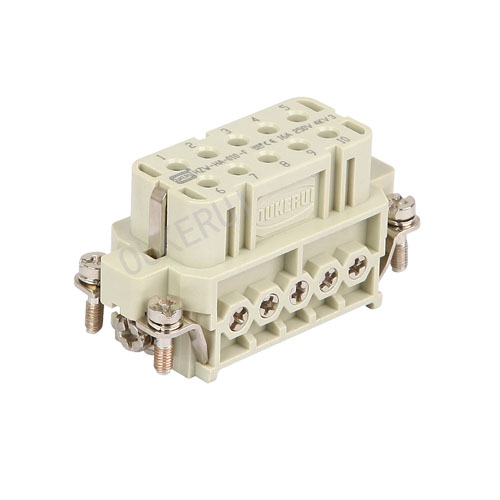

10 Pin 16A 250V Heavy Duty Connector Female Insert
  • 10 Pin 16A 250V Heavy Duty Connector Female Insert10 Pin 16A 250V Heavy Duty Connector Female Insert

10 Pin 16A 250V Heavy Duty Connector Female Insert

High quality 10 Pin 16A 250V Heavy Duty Connector Female Insert is offered by China manufacturer OUKERUI Buy 10 Pin 16A 250V Heavy Duty Connector Female Insert that is high quality directly with low price. We have our own factory We design and manufacture ourselves with competitive price.Get a free quote now! Worldwide shipping 1 day delivery online service.

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of high performance connectors. 10 Pin 16A 250V Heavy Duty Connector Female Insert The number of connectors is 10, with 16A operating current and 250V operating voltage.And designed for demanding environments or applications.At high vibrations, standard housings and connectors can be broken.fail,This makes them exceptionally durable and reliable in any environment.

Product Description

10 Pin 16A 250V  Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HA-010F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HA-010F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)

10 Pin 16A 250V  Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
