Home > Products > Heavy Duty Connector Insert > 10 Pin 16A 500V Heavy Duty Connector Female Insert

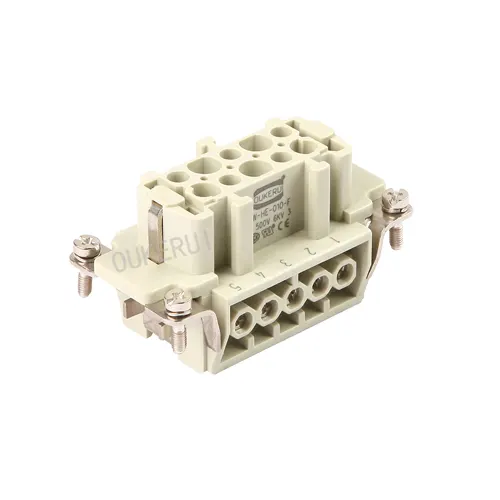

10 Pin 16A 500V Heavy Duty Connector Female Insert
  • 10 Pin 16A 500V Heavy Duty Connector Female Insert10 Pin 16A 500V Heavy Duty Connector Female Insert

10 Pin 16A 500V Heavy Duty Connector Female Insert

OUKERUI is a professional China 10 Pin 16A 500V Heavy Duty Connector Female Insert manufacturer and supplier. We employ dedicated and dedicated technicians who not only enjoy their careers but also learn and develop skills throughout the year Ongoing education and training keeps us abreast of industry trends. Therefore, we can always provide the highest level of service.

Send Inquiry    PDF DownLoad

Product Description

OUKERUI is China manufacturer & supplier who mainly produces 10 Pin 16A 500V Heavy Duty Connector Female Insert with many years of experience. ISO90001 certified factory, CE and UL certified heavy duty connector coating. Anti-corrosion powder spray with high quality products reasonable price and attentive service We are happy to establish friendly and cooperative relationship with your company. and create a better future together

Product Description

10 Pin 16A 500V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HE-010F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HE-010F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

10 Pin 16A 500V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: 10 Pin 16A 500V Heavy Duty Connector Female Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
