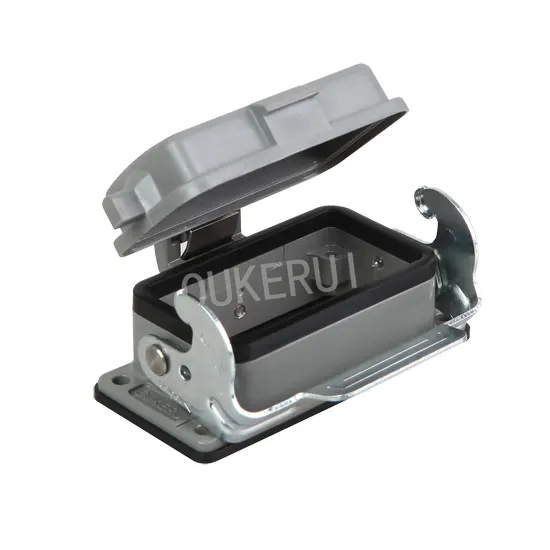

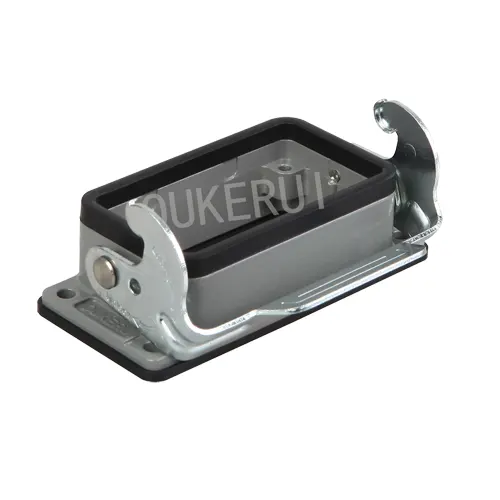

10B Bulkhead Mounting Heavy Duty Connector Housings
  • 10B Bulkhead Mounting Heavy Duty Connector Housings10B Bulkhead Mounting Heavy Duty Connector Housings
  • 10B Bulkhead Mounting Heavy Duty Connector Housings10B Bulkhead Mounting Heavy Duty Connector Housings

10B Bulkhead Mounting Heavy Duty Connector Housings

OUKERUI of the Chinese manufacturer provides the 10B Bulkhead Mounting Heavy Duty Connector Housings quality. Buy high quality 10B Bulkhead Mounting Heavy Duty Connector Housings at low prices.We believe persistence is the key to business success. Meeting the needs of consumers is the basis of a company's survival, and product quality is the life of a company. We hope to be your long-term partner.

Send Inquiry

Product Description

OUKERUI is a leading10B Bulkhead Mounting Heavy Duty Connector Housings manufacturer, supplier and exporter in China. After the perfect search for product quality, many customers are satisfied with our10B Bulkhead Mounting Heavy Duty Connector Housings.Original Factory Heavy Duty Connector Housings for Control Cabinet&Wire Harness

Product Description

OUKERUI 10B Bulkhead Mounting Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO. HZW-H10B-ST-1PL
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Material Die-casting zinc
Colour  Grey
Locking element  Lever type
-Lever type Single lever
-Material Stainless steel
Hoods/Housing seal NBR
Limiting temperatures -40~+125ºC
Flammability acc.to UL94 V0
Degree of protection acc.to DIN EN 60 529 for coupled connector IP65
Mounting type Bulkhead/Surface/Cable to Cable
Couple inserts HDD-042,HE-010,HEE-018,HVE-003,HK-8/24

The option of HZW-10B Hoods

Structure types of Hoods Low & high alternative
Type of entry Side & top entry alternative
Locking lever type Single locking lever
Bolts for hooking Stainless steel
Thread Size of cable gland M20/PG16/M25

The option of HZW-10B housings

Structure of Housing Low & high alternative
Mounting Type Bulkhead & Surface Installation
Type of exit Bottom & Side Exit alternative
Locking lever type Single Lever /Double Locking Levers
Locking Lever's Material Stainless steel & steel covering engineering plastic
Thread Size of cable gland M20/PG16/M25
Cable exit type of high structure one/two exit

10B Bulkhead Mounting Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

FAQ

Q1.Are you a manufacturer?
A1: Yes, we are a experienced manufacturer with our own molds and production lines.

Q2. How about the quality of the 10B Bulkhead Mounting Heavy Duty Connector Housings?
A2: We have professional technicians and teams using specialized equipment and instruments to test products one by one.

Q3.How about price?
A3: We are a manufacturer and always offer our customers the most competitive factory price.

Q4.How to play an order?
A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.

Q5.May I buy samples from you?
A5: Yes! You are welcome to place sample order to test our superior quality and services.




Hot Tags: 10B Bulkhead Mounting Heavy Duty Connector Housings, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
