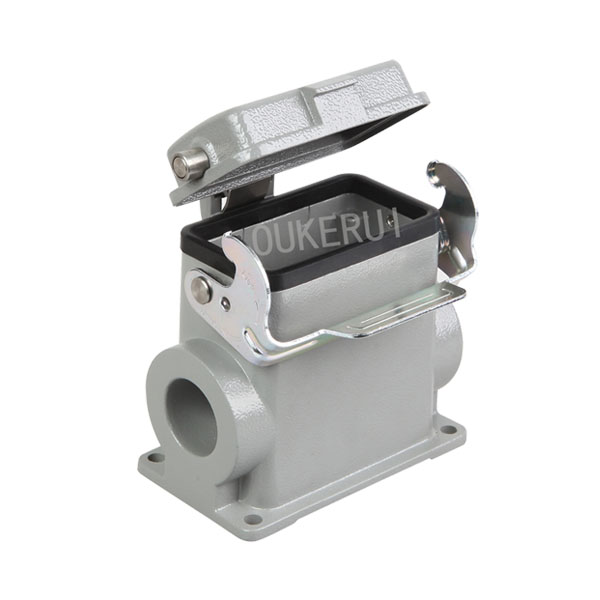

10B  Surface Mounting With Metal  High Structure Heavy Duty Connector Housings
  • 10B  Surface Mounting With Metal  High Structure Heavy Duty Connector Housings10B  Surface Mounting With Metal  High Structure Heavy Duty Connector Housings

10B Surface Mounting With Metal High Structure Heavy Duty Connector Housings

OUKERUI with years of manufacturing experience, 10B Surface Mounting With Metal High Structure Heavy Duty Connector Housings can supply a wide range of 10B Surface Mounting With Metal High Structure Heavy Duty Connector Housings We are ready to establish a successful partnership with your company and create a bright future with high quality products. Competitive price and considerate service are our goals.

Send Inquiry

Product Description

High quality 10B Surface Mounting With Metal High Structure Heavy Duty Connector Housings provided by OUKERUI China manufacturer. Buy high quality 10B Surface Mounting With Metal High Structure Heavy Duty Connector Housings directly at low price. We have CE and UL certification, ISO certified production, according to Harting, Ilme has rich experience, QC can help you inspect the factory and check the product quality before shipping.

Product Description

10B Surface Mounting With Plastic High Structure Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-H10B-SGH-MCV-1PL-2PG29
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Surface Epoxy powder Coating
Material Die-casting zinc
Colour  Grey
Locking element  Lever type
-Lever type Single lever
-Material Stainless steel
Hoods/Housing seal NBR
Limiting temperatures -40~+125ºC
Flammability acc.to UL94 V0
Degree of protection acc.to DIN EN 60 529 for coupled connector IP65
Mounting type Bulkhead/Surface/Cable to Cable
Couple inserts
HDD-042,HE-010,HEE-018,HVE-003,HK-8/24

The option of HZW-10B Hoods

Structure types of Hoods Low & high alternative
Type of entry Side & top entry alternative
Locking lever type Single locking lever
Bolts for hooking Stainless steel
Thread Size of cable gland M20/PG16/M25

The option of HZW-10B housings

Structure of Housing Low & high alternative
Mounting Type Bulkhead & Surface Installation
Type of exit Bottom & Side Exit alternative
Locking lever type Single Lever /Double Locking Levers
Locking Lever's Material Stainless steel & steel covering engineering plastic
Thread Size of cable gland M20/PG16/M25
Cable exit type of high structure one/two exit
110B Surface Mounting With Metal  High Structure Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
