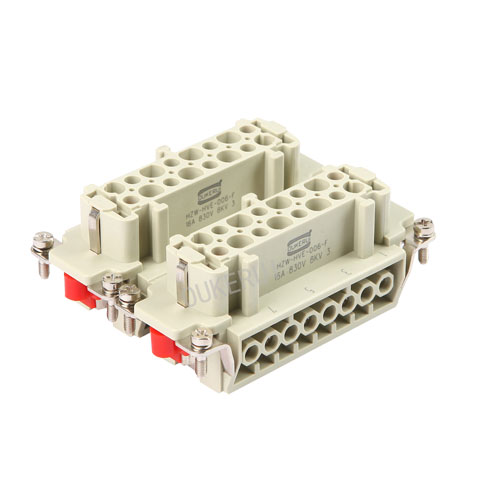

12 Pin 16A Heavy Duty Connector Female Insert
  • 12 Pin 16A Heavy Duty Connector Female Insert12 Pin 16A Heavy Duty Connector Female Insert

12 Pin 16A Heavy Duty Connector Female Insert

As a professional manufacturer of high quality 12 Pin 16A Heavy Duty Connector Female Insert, you can rest assured to buy 12 Pin 16A Heavy Duty Connector Female Insert from our factory. 12 Pin 16A Heavy Duty Connector Female Insert Widely used in railway transportation, machinery manufacturing, automatic guardrails.We firmly believe that perseverance is the key to business success. Continuously meet the needs of consumers is the foundation of enterprise survival, product quality is the life of enterprises

Send Inquiry

Product Description

OUKERUI has extensive sales12 Pin 16A Heavy Duty Connector Female Insert experience factory. Connector material Copper Application Conductivity Electrical signal transmission Automation and equipment You can buy with confidence 12 Pin 16A Heavy Duty Connector Female Insert. Due to sincere reputation and professional and enthusiastic service, our factory offers our customers 3 main standards of high quality materials, preferential prices and high quality services.And has been the majority of customers love.

Product Description

12 Pin 16A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HVE-012F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HVE-012F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 830V
Rated Impulse Voltage 8KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

12 Pin 16A Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
