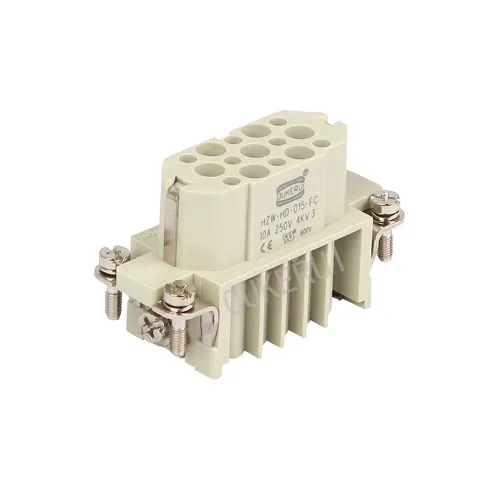

15 Pin Heavy Duty Connector Female Insert
  • 15 Pin Heavy Duty Connector Female Insert15 Pin Heavy Duty Connector Female Insert

15 Pin Heavy Duty Connector Female Insert

OUKERUI is a manufacturer and supplier in China, mainly producing 15 Pin Heavy Duty Connector Female Insert.We look forward to establishing business relationship with you. The reputation of the company is based on on-time delivery, high quality and competitive pricing. We would like to be your reliable long-term business partner! Our products have good price advantages and cover most of European and American markets. We look forward to becoming your long-term partner in China.

Send Inquiry    PDF DownLoad

Product Description

As a professional high quality 15 Pin Heavy Duty Connector Female Insert manufacture Please rest assured to buy the bulk mount 15 Pin Heavy Duty Connector Female from our factory. We provide the best customer service and fast delivery. High-performance 15-pin connector housing for power, signal and compressed air output.

Product Description

15 Pin Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-015FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-015FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

15 Pin Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
