Home > Products > Heavy Duty Connector Insert > 15 Pin Heavy Duty Connector Male Insert

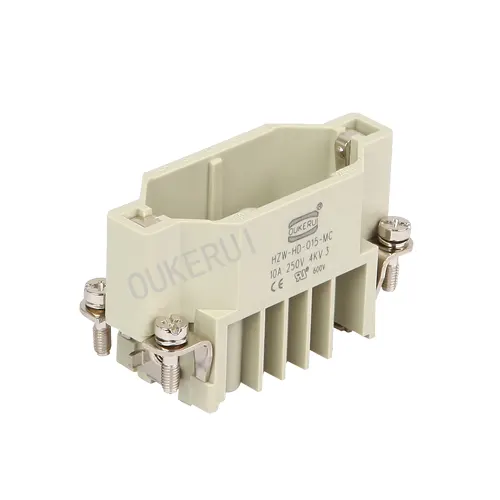

15 Pin Heavy Duty Connector Male Insert
  • 15 Pin Heavy Duty Connector Male Insert15 Pin Heavy Duty Connector Male Insert

15 Pin Heavy Duty Connector Male Insert

OUKERUI of the Chinese manufacturer provides the 15 Pin Heavy Duty Connector Male Insert quality. Buy high quality 115 Pin Heavy Duty Connector Male Insert at low prices. We believe persistence is the key to business success. Meeting consumer demand is fundamental to a company's survival. and product quality is the life of the company. We look forward to becoming your long-term partner.

Send Inquiry    PDF DownLoad

Product Description

OUKERUI is a leading 15 Pin Heavy Duty Connector Male Insert manufacturer, supplier and exporter in China.After the perfect search for product quality, many customers are satisfied with our 15 Pin Heavy Duty Connector Male Insert. Industrial Multipole Connector Offering a Solution to Power, Signal and Compressed Air in Automation and Robotics Industry

Product Description

15 Pin Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-015MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-015MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

15 Pin Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
