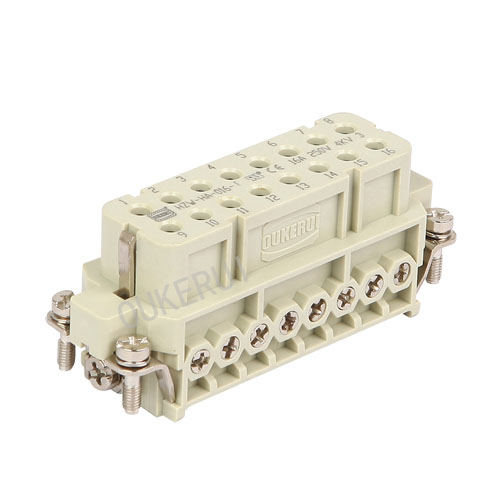

16 Pin 16A 250V Heavy Duty Connector Female Insert
  • 16 Pin 16A 250V Heavy Duty Connector Female Insert16 Pin 16A 250V Heavy Duty Connector Female Insert

16 Pin 16A 250V Heavy Duty Connector Female Insert

OUKERUI is a professional China 16 Pin 16A 250V Heavy Duty Connector Female Insert manufacturer and supplier, if you are looking for the best 16 Pin 16A 250V Heavy Duty Connector Female Insert with low price, consult us now. With competitive price and reliable delivery service. We are expecting to become your long-term partner in China.

Send Inquiry

Product Description

With years of experience in 16 Pin 16A 250V Heavy Duty Connector Female Insert production, the company name can provide a variety of 16 Pin 16A 250V Heavy Duty Connector Female Insert High quality 16 Pin 16A 250V Heavy Duty Connector Female Insert can fulfill different uses. If you need them, use our timely online 16 Pin 16A 250V Heavy Duty Connector Female Insert service. In addition to the product list below, you can customize your own unique 16 Pin 16A 250V Heavy Duty Connector Female Insert to meet your specific needs

Product Description

16 Pin 16A 250V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HA-016F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HA-016F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)

16 Pin 16A 250V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
