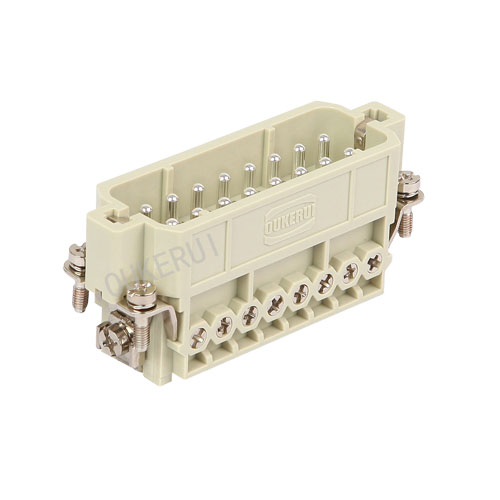

16 Pin 16A 250V Heavy Duty Connector Male Insert
  • 16 Pin 16A 250V Heavy Duty Connector Male Insert16 Pin 16A 250V Heavy Duty Connector Male Insert

16 Pin 16A 250V Heavy Duty Connector Male Insert

You can rest assured to buy 16 Pin 16A 250V Heavy Duty Connector Male Insert from our factory and we will offer you the best after-sale service and timely delivery. Duty Connector Male Insert with many years of experience. We look forward to establishing friendly and cooperative relationship with your company with high quality products. reasonable price and thoughtful service and work together to create a better future

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of high performance connectors.16 Pin 16A 250V Heavy Duty Connector Male Insert OUKERUI is a modern company specializing in high performance connectors manufacturing and sales. sincere suggestions from customers from various industries, and constantly absorbing international advanced technology and design ideas.

Product Description

16 Pin 16A 250V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HA-016M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HA-016M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)

16 Pin 16A 250V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
