16A Male Connector Crimp Contacts
  • 16A Male Connector Crimp Contacts16A Male Connector Crimp Contacts
  • 16A Male Connector Crimp Contacts16A Male Connector Crimp Contacts

16A Male Connector Crimp Contacts

OUKERUI is a Chinese factory producing 16 Pin 16A 500V Heavy Duty Connector Male Insert located in Ningbo, China. We manufacture heavy duty connectors for over 10 years. Our connectors are CE/UL/ISO9001 certified. We can provide excellent quality and service.Now Oukerui is in a fast-growth phase and our market share is increasingly enlarged. We keep on creating more eco-friendly and valuable products to satisfy the increasing demands from all clients.We sincerely invite you to join our common career to create brilliance together OUKERUI is a Chinese factory producing 16A Male Connector Crimp Contacts located in Ningbo, China. Our company's reputation is based on on-time delivery, high quality and competitive prices. We would like to be your reliable and long-term business partner! Its products are nationally recognized for their reliability and good quality

Send Inquiry    PDF DownLoad

Product Description

OUKERUI is a Chinese factory producing 16A Male Connector Crimp Contacts located in Ningbo, China. Our company's reputation is based on on-time delivery, high quality and competitive prices. We would like to be your reliable and long-term business partner! Its products are nationally recognized for their reliability and good quality

Product Description

16A Male Connector Crimp Contacts is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

16A Crimp contacts
Wire gauge Stripping length
0.14-0.37mm² AWG 26-22 7.5mm
0.5mm² AWG 20 7.5mm
0.75mm² AWG 18 7.5mm
1.0mm² AWG 18 7.5mm
1.5mm² AWG 16 7.5mm
2.5mm² AWG 14 7.5mm
3.0mm² AWG 12 7.5mm
4.0mm² AWG 12 7.5mm

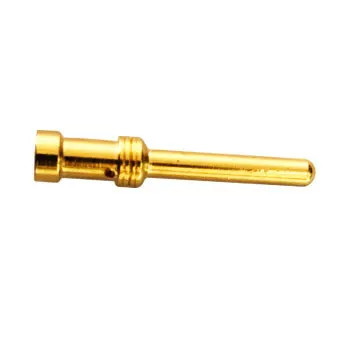

Contacts , Gold-plated
Male contacts Order NO Female contacts Order NO
CEGM-0.37 70016101037 CEGF-0.37 70016100037
CEGM-0.5 70016101050 CEGF-0.5 70016100050
CEGM-0.75 70016101075 CEGF-0.75 70016100075
CEGM-1.0 70016101100 CEGF-1.0 70016100100
CEGM-1.5 70016101150 CEGF-1.5 70016100150
CEGM-2.5 70016101250 CEGF-2.5 70016100250
CEGM-3.0 70016101300 CEGF-3.0 70016100300
CEGM-4.0 70016101400 CEGF-4.0 70016100400

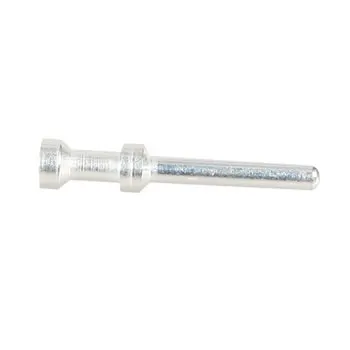

Contacts , Silver-plated
Male contacts Order NO Female contacts Order NO
CESM-0.37 70016201037 CESF-0.37 70016200037
CESM-0.5 70016201050 CESF-0.5 70016200050
CESM-0.75 70016201075 CESF-0.75 70016200075
CESM-1.0 70016201100 CESF-1.0 70016200100
CESM-1.5 70016201150 CESF-1.5 70016200150
CESM-2.5 70016201250 CESF-2.5 70016200250
CESM-3.0 70016201300 CESF-3.0 70016200300
CESM-4.0 70016201400 CESF-4.0

70016200400

16A Male Connector Crimp Contacts extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
