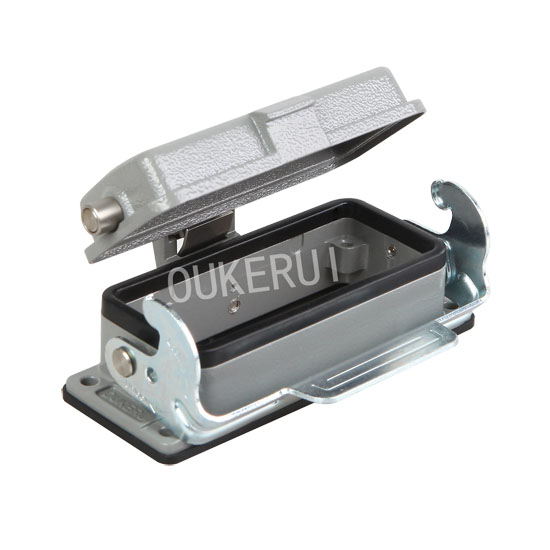

OUKERUI is a Chinese factory producing 16B Bulkhead mounting Single Metal Lever Heavy Duty Connector Housings located in Ningbo, China. We have been manufacturing 16B Bulkhead mounting Single Metal Lever Heavy Duty Connector Housings or over 10 years. Our connector has approved CE/UL/ISO9001 certification. Honestly we welcome you to join our team to advance together!
As a professional manufacturer, we would like to offer 16B Bulkhead mounting Single Metal Lever Heavy Duty Connector Housings. 16B Bulkhead mounting Single Metal Lever Heavy Duty Connector Housings can Replace Harting,Weidmuller ,ILME for Automation Industry . We deliver the products as soon as possible, with a perfect job service. If you are interested, do not hesitate to contact us.
16B Bulkhead mounting Single Metal Lever Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Model NO. | HZW-H16B-ST-MCV-1PL |
Contacts Surface Treatment | Silver/Glod Plated |
Housing Material | Die-Casting Aluminum Alloy |
Working Environments | IP65 for Various Harsh Environments |
Contact Cost | Pay Additional Cost for Crimp Contacts |
Specification | CE, UL, ROHS |
Origin | China |
Production Capacity | 3000pieces Per Day |
Certification | UL |
Contact Material | Copper |
Housing Coating | Anti-Corrosion Powder Spray |
Crimp Tooling | Available |
Transport Package | Poly bag and Double Cartons |
Trademark | Oukerui |
HS Code | 8536900000 |
Surface | Epoxy powder Coating |
Material | Die-casting zinc |
Colour | Grey |
Locking element | Lever type |
-Lever type | Single lever |
-Material | Stainless steel |
Hoods/Housing seal | NBR |
Limiting temperatures | -40~+125ºC |
Flammability acc.to UL94 | V0 |
Degree of protection acc.to DIN EN 60 529 for coupled connector | IP65 |
Mounting type | Bulkhead/Surface/Cable to Cable |
Couple inserts | HD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006, |
HK-4/0,HK-4/2 |
Structure types of Hoods | Low & high alternative |
Type of entry | Side & top entry alternative |
Locking lever type | Single locking lever |
Bolts for hooking | Stainless steel |
Structure of Housing | Low & high alternative |
Mounting Type | Bulkhead & Surface Installation |
Type of exit | Bottom & Side Exit alternative |
Locking lever type | Single Lever /Double Locking Levers |
Locking Lever's Material | Stainless steel & steel covering engineering plastic |
Cable exit type of high structure | one/two exit |
