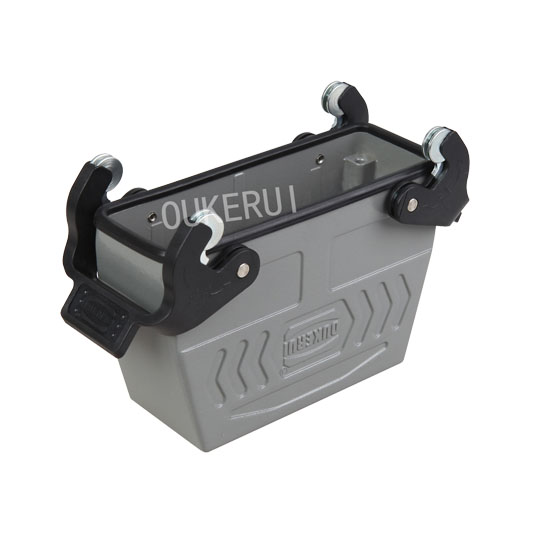

16B Cable to Cable High Structure Double Plastic Lever Heavy Duty Connector Housings

OUKERUI is a leading 16B Cable to Cable High Structure Double Plastic Lever Heavy Duty Connector Housings manufacturer, supplier and exporter in China. We have rich sales experience After the perfect search for product quality, many customers are satisfied with our 16B Cable to Cable High Structure Double Plastic Lever Heavy Duty Connector Housings We are known for high quality products and competitive prices. We invite you to contact us and become our partner for common progress.

Send Inquiry

Product Description

As a professional manufacturer, we are ready to provide you with 16B Cable to Cable High Structure Double Plastic Lever Heavy Duty Connector Housings We have combined compressed air, electrical, modular connector housings for heavy signal loads. Supply original strong connector housings for electrical control cabinets in automation industry, we will provide professional after-sales service and fast delivery.

Product Description

16B Cable to Cable Double Metal Lever Heavy Duty Connector Housings manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-H16B-DJKH-2PL/R-PG21
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Surface	Epoxy powder Coating
Material	Die-casting zinc
Colour	Grey
Locking element	Lever type
-Lever type	Single lever
-Material	Stainless steel
Hoods/Housing seal	NBR
Limiting temperatures	-40~+125ºC
Flammability acc.to UL94	V0
Degree of protection acc.to DIN EN 60 529 for coupled connector	IP65
Mounting type	Bulkhead/Surface/Cable to Cable
Couple inserts	HD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006,
Couple inserts	HK-4/0,HK-4/2

The option of HZW-16B Hoods

Structure types of Hoods	Low & high alternative
Type of entry	Side & top entry alternative
Locking lever type	Single locking lever
Bolts for hooking	Stainless steel
Thread Size of cable gland	PG21,M32,PG29,M40

The option of HZW-16B housings

Structure of Housing	Low & high alternative
Mounting Type	Bulkhead & Surface Installation
Type of exit	Bottom & Side Exit alternative
Locking lever type	Single Lever /Double Locking Levers
Locking Lever's Material	Stainless steel & steel covering engineering plastic
Thread Size of cable gland	PG21,M32,PG29,M40
Cable exit type of high structure	one/two exit

16B Cable to Cable High Structure Double Plastic Lever Heavy Duty Connector Housings
are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
