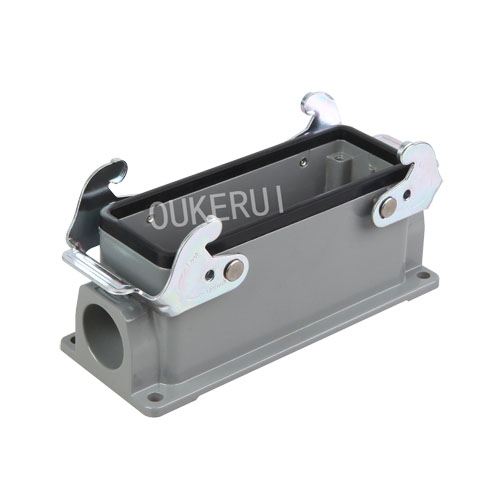

OUKERUI of the Chinese manufacturer provides the 16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings. Buy high quality 16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings at low price. We believe persistence is the key to business success. Meeting the needs of consumers is essential for the survival of an organization. And the quality of the product is the life of an enterprise. We can't wait to work with you.
OUKERUI is a leading 16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings manufacturer, supplier and exporter in China. After perfect pursuit of product quality, many customers are satisfied with our products 16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings We supply control cabinets and wiring harnesses with robust factory-made connector housings.
16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Model NO. | HZW-H16B-SG-2PL/M-M25 |
Contacts Surface Treatment | Silver/Glod Plated |
Housing Material | Die-Casting Aluminum Alloy |
Working Environments | IP65 for Various Harsh Environments |
Contact Cost | Pay Additional Cost for Crimp Contacts |
Specification | CE, UL, ROHS |
Origin | China |
Production Capacity | 3000pieces Per Day |
Certification | UL |
Contact Material | Copper |
Housing Coating | Anti-Corrosion Powder Spray |
Crimp Tooling | Available |
Transport Package | Poly bag and Double Cartons |
Trademark | Oukerui |
HS Code | 8536900000 |
Surface | Epoxy powder Coating |
Material | Die-casting zinc |
Colour | Grey |
Locking element | Lever type |
-Lever type | Single lever |
-Material | Stainless steel |
Hoods/Housing seal | NBR |
Limiting temperatures | -40~+125ºC |
Flammability acc.to UL94 | V0 |
Degree of protection acc.to DIN EN 60 529 for coupled connector | IP65 |
Mounting type | Bulkhead/Surface/Cable to Cable |
Couple inserts | HD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006, |
HK-4/0,HK-4/2 |
Structure types of Hoods | Low & high alternative |
Type of entry | Side & top entry alternative |
Locking lever type | Single locking lever |
Bolts for hooking | Stainless steel |
Thread Size of cable gland | M25,PG21,2M25,2PG21 |
16B Surface Mounting M25 Plug Double Metal Lever Heavy Duty Connector Housings Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
