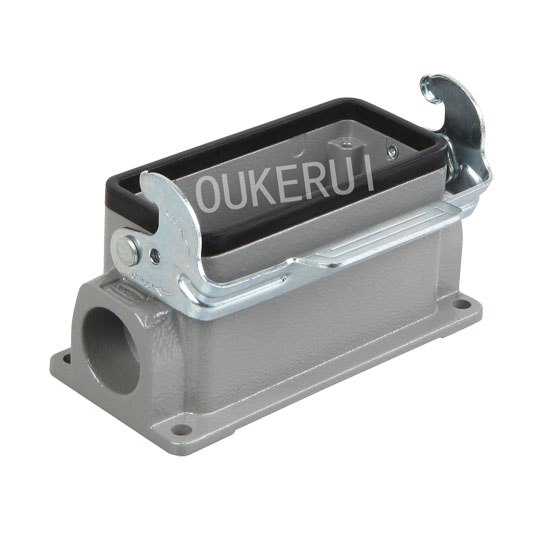

OUKERUI with years of manufacturing experience, 16B Surface Mounting Single Lever Heavy Duty Connector Housings can supply a wide range of 16B Surface Mounting Single Lever Heavy Duty Connector Housings.We are willing to establish a successful cooperation relationship with your company and create a better future with high quality products. Competitive prices and reflective services are our target.
High quality 16B Surface Mounting Single Lever Heavy Duty Connector Housings provided by OUKERUI China manufacturer. Buy high quality 16B Surface Mounting Single Lever Heavy Duty Connector Housings directly at low price. We have CE, UL and ISO certifications. Can replace Harting, Ilme. We have rich sales experience. QC can help you to inspect the factory and check the product quality before shipment.
16B Surface Mounting Single Lever Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Model NO. | HZW-H16B-SG-1PL-M25 |
Contacts Surface Treatment | Silver/Glod Plated |
Housing Material | Die-Casting Aluminum Alloy |
Working Environments | IP65 for Various Harsh Environments |
Contact Cost | Pay Additional Cost for Crimp Contacts |
Specification | CE, UL, ROHS |
Origin | China |
Production Capacity | 3000pieces Per Day |
Certification | UL |
Contact Material | Copper |
Housing Coating | Anti-Corrosion Powder Spray |
Crimp Tooling | Available |
Transport Package | Poly bag and Double Cartons |
Trademark | Oukerui |
HS Code | 8536900000 |
Surface | Epoxy powder Coating |
Material | Die-casting zinc |
Colour | Grey |
Locking element | Lever type |
-Lever type | Single lever |
-Material | Stainless steel |
Hoods/Housing seal | NBR |
Limiting temperatures | -40~+125ºC |
Flammability acc.to UL94 | V0 |
Degree of protection acc.to DIN EN 60 529 for coupled connector | IP65 |
Mounting type | Bulkhead/Surface/Cable to Cable |
Couple inserts | HD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006, |
HK-4/0,HK-4/2 |
Structure types of Hoods | Low & high alternative |
Type of entry | Side & top entry alternative |
Locking lever type | Single locking lever |
Bolts for hooking | Stainless steel |
Thread Size of cable gland | M25/PG21/2M25/2PG21 |
Structure of Housing | Low & high alternative |
Mounting Type | Bulkhead & Surface Installation |
Type of exit | Bottom & Side Exit alternative |
Locking lever type | Single Lever /Double Locking Levers |
Locking Lever's Material | Stainless steel & steel covering engineering plastic |
Thread Size of cable gland | M25/PG21/2M25/2PG21 |
Cable exit type of high structure | one/two exit |
