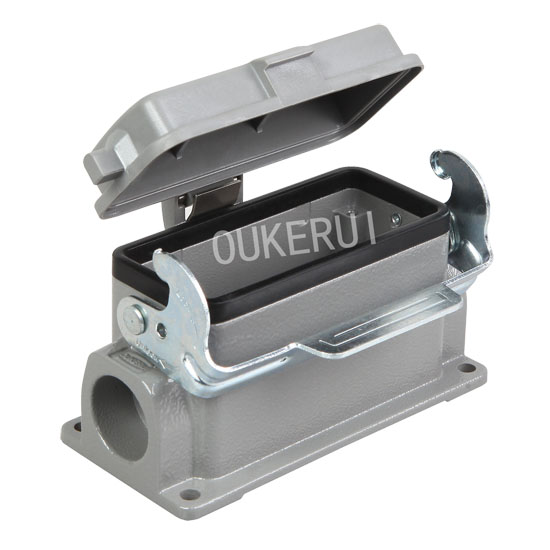

16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings
  • 16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings

16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings. The company focuses on the needs of customers, constantly improves itself and improves services. We have established good long-term cooperative relationships with many European, American, Asian and domestic customers. We can't wait to work with you.

Send Inquiry

Product Description

Below is an introduction to the high quality16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings. We hope this will help you better understand the 16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings. We can replace Harting ISO certified, water resistant, insert protected epoxy/chrome paint.

Product Description

16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-H16B-SG-CV-1PL-M25
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Surface Epoxy powder Coating
Material Die-casting zinc
Colour  Grey
Locking element  Lever type
-Lever type Single lever
-Material Stainless steel
Hoods/Housing seal NBR
Limiting temperatures -40~+125ºC
Flammability acc.to UL94 V0
Degree of protection acc.to DIN EN 60 529 for coupled connector IP65
Mounting type Bulkhead/Surface/Cable to Cable
Couple inserts HD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006,
HK-4/0,HK-4/2

The option of HZW-16B Hoods

Structure types of Hoods Low & high alternative
Type of entry Side & top entry alternative
Locking lever type Single locking lever
Bolts for hooking Stainless steel
Thread Size of cable gland M25/PG21/2M25/2PG21

The option of HZW-16B housings

Structure of Housing Low & high alternative
Mounting Type Bulkhead & Surface Installation
Type of exit Bottom & Side Exit alternative
Locking lever type Single Lever /Double Locking Levers
Locking Lever's Material Stainless steel & steel covering engineering plastic
Thread Size of cable gland M25/PG21/2M25/2PG21
Cable exit type of high structure one/two exit

16B Surface Mounting Single Lever With Plastic Cover Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
