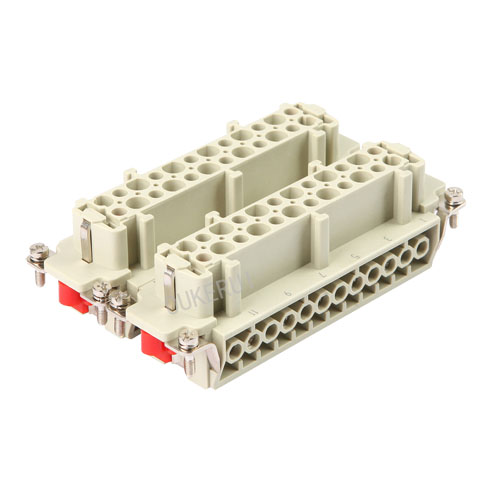

20 Pin 16A 830V Heavy Duty Connector Female Insert
  • 20 Pin 16A 830V Heavy Duty Connector Female Insert20 Pin 16A 830V Heavy Duty Connector Female Insert

20 Pin 16A 830V Heavy Duty Connector Female Insert

With years of experience in production 20 Pin 16A 830V Heavy Duty Connector Female Insert, OUKERUI can supply a wide range of 20 Pin 16A 830V Heavy Duty Connector Female Insert High quality20 Pin 16A 830V Heavy Duty Connector Female Insert It can meet a wide range of applications. We are willing to establish a friendly and cooperative relationship with your company with high quality products, reasonable prices and considerate service, and join hands to create a better future. if you need, please contact our online service in time

Send Inquiry

Product Description

You can rest assured to buy customized 20 Pin 16A 830V Heavy Duty Connector Female Insert from us. 20 pin, industrial connector equivalent to Harting, Ilme, high performance, competitive price Industrial connectors for the automation industry, IP65 waterproof, high voltage, manufactured. With rich experience, QC can help you to inspect the factory or check the quality of goods before shipment.

Product Description

20 Pin 16A 830V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HVE-020F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HVE-020F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 830V
Rated Impulse Voltage 8KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

20 Pin 16A 830V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
