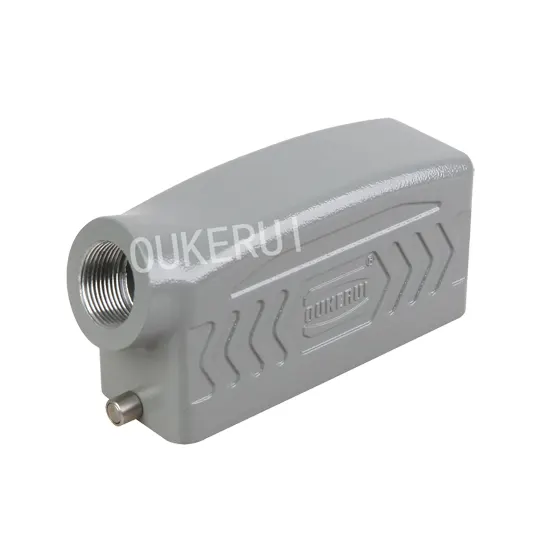

24B Side Entry M25 Plug Heavy Duty Connector Hoods
  • 24B Side Entry M25 Plug Heavy Duty Connector Hoods24B Side Entry M25 Plug Heavy Duty Connector Hoods
  • 24B Side Entry M25 Plug Heavy Duty Connector Hoods24B Side Entry M25 Plug Heavy Duty Connector Hoods

24B Side Entry M25 Plug Heavy Duty Connector Hoods

As the professional manufacture, we would like to provide you Oukerui 24B Side Entry M25 Plug Heavy Duty Connector Hoods. And we will offer you the best after-sale service and timely delivery. We hire passionate and dedicated technicians who not only enjoy their careers, but also learn and expand their skills throughout the years. Ongoing training and education keeps us up-to-date with industry trends, ensuring top-notch service whenever you need it.

Send Inquiry

Product Description

As a professional high quality Oukerui 24B Side Entry M25 Plug Heavy Duty Connector Hoods manufacture, you can rest assured to buy 24B Side Entry M25 Plug Heavy Duty Connector Hoods CE and UL Approved, Water-Proof Heavy Duty Connector Housings for Industrial Machines.We enjoy a reputation of quality, ethics and service

Product Description

Oukerui 24B Side Entry M25 Plug Heavy Duty Connector Hoods  is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO. HZW-H24B-SK-2G-M25
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Surface Epoxy powder Coating
Material Die-casting zinc
Colour  Grey
Locking element  Lever type
-Lever type Single lever
-Material Stainless steel
Hoods/Housing seal NBR
Limiting temperatures -40~+125ºC
Flammability acc.to UL94 V0
Degree of protection acc.to DIN EN 60 529 for coupled connector IP65
Mounting type Bulkhead/Surface/Cable to Cable
Couple inserts HD-064,HDD-108,HE-024,HEE-046,NVE-010,HVE-016,HK-4/8

The option of HZW-24B Hoods

Structure types of Hoods Low & high alternative
Type of entry Side & top entry alternative
Locking lever type Single locking lever
Bolts for hooking Stainless steel
Thread Size of cable gland M25/PG21/M32/PG29/M40

The option of HZW-24B housings

Structure of Housing Low & high alternative
Mounting Type Bulkhead & Surface Installation
Type of exit Bottom & Side Exit alternative
Locking lever type Single Lever /Double Locking Levers
Locking Lever's Material Stainless steel & steel covering engineering plastic
Thread Size of cable gland M25/PG21/M32/PG29/M40
Cable exit type of high structure one/two exit

24B Side Entry M25 Plug Heavy Duty Connector Hoods are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: 24B Side Entry M25 Plug Heavy Duty Connector Hoods, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
