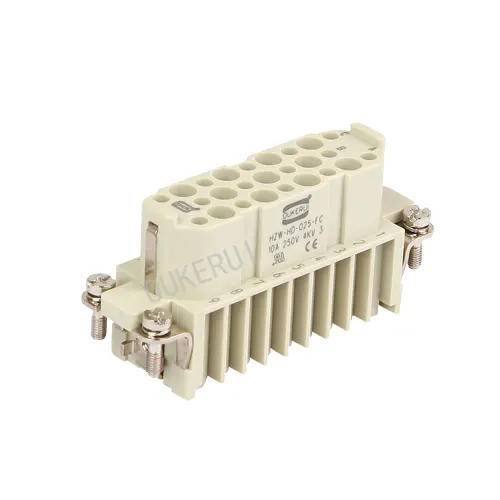

25 Pin 10A Heavy Duty Connector Female Insert
  • 25 Pin 10A Heavy Duty Connector Female Insert25 Pin 10A Heavy Duty Connector Female Insert

25 Pin 10A Heavy Duty Connector Female Insert

As a professional manufacturer of high quality 25 Pin 10A Heavy Duty Connector Female Insert. Please rest assured to buy 25 Pin 10A Heavy Duty Connector Female Insert from our factory. We provide the best customer service and fast delivery. We recruit dedicated and dedicated technicians who not only enjoy their careers but also continually practice and develop skills throughout the year Ongoing training and education help us keep up with industry trends. so that we can provide excellent service whenever needed.

Send Inquiry    PDF DownLoad

Product Description

With years of experience in 25 Pin 10A Heavy Duty Connector Female Insert production OUKERUI can therefore supply a variety of 25 Pin 10A Heavy Duty Connector Female Insert. High quality and versatile 25 Pin 10A Heavy Duty Connector Female Insert.IP65 Heavy Duty Connector with CE and UL Approval Compliant with Harting Relevant Models

Product Description

25 Pin 10A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-025FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-025FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

25 Pin 10A Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
