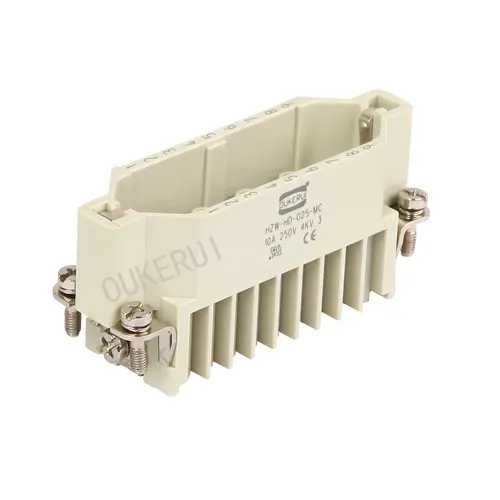

25 Pin 10A Heavy Duty Connector Male Insert
  • 25 Pin 10A Heavy Duty Connector Male Insert25 Pin 10A Heavy Duty Connector Male Insert

25 Pin 10A Heavy Duty Connector Male Insert

As a professional maker, we are willing to provide you with high quality 25 Pin 10A Heavy Duty Connector Male Insert . We will give you the best after-sale service and fast delivery. The products are known throughout the country for their reliability and good quality. and exported to Europe, America, Africa and Australia. Looking into the future, the company will continue to improve and expand.

Send Inquiry    PDF DownLoad

Product Description

OUKERUI is China's leading 25 Pin 10A Heavy Duty Connector Male Insert manufacturer, supplier and exporter. Rectangular Heavy Duty Connectors (HDC) are industrial connectors designed to transmit power, data and signals under the toughest conditions. in a vibrating environment dust hazard temperature challenge Our HDC connectors offer a reliable solution with solid or thermoplastic hoods and aluminum housings with protection levels ranging from IP65 to IP69k.

Product Description

25 Pin 10A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-025MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000


Model No. HZW-HD-025MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton


Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

25 Pin 10A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
