China High Quality 3 Pin 10A 230/400V Heavy Duty Connector Female Insert Manufacturers and Suppliers

Product Description

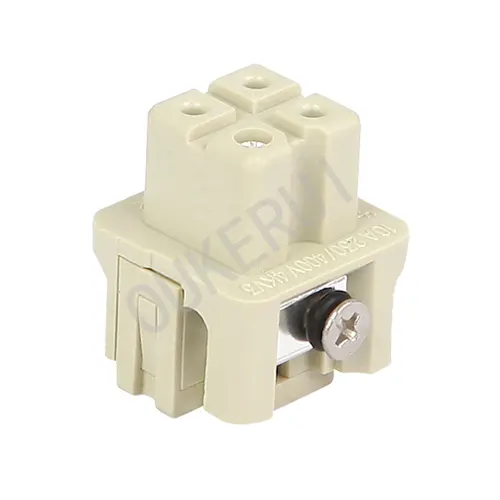

OUKERUI is a professional manufacturer of heavy duty connectors. 3 Pin 10A 230/400V Heavy Duty Connector Female Insert. The number of connectors is 3, with 10A operating current and 230/400V operating voltage. And is designed for challenging environments or applications where high vibration can cause standard housings and connectors to fail, making them ultra-durable and reliable in any type of environment.

Product Description

3 Pin 10A 230/400V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO.	HZW-HA-003F
Contacts Surface Treatment	Silver/Glod Plated
Housing Material	Die-Casting Aluminum Alloy
Working Environments	IP65 for Various Harsh Environments
Contact Cost	Pay Additional Cost for Crimp Contacts
Specification	CE, UL, ROHS
Origin	China
Production Capacity	3000pieces Per Day
Certification	UL
Contact Material	Copper
Housing Coating	Anti-Corrosion Powder Spray
Crimp Tooling	Available
Transport Package	Poly bag and Double Cartons
Trademark	Oukerui
HS Code	8536900000

SPECIFICATION

Model No.	HZW-HA-003F
Terminal type	Screw Terminal
Housings material	Dia casting aluminum alloy
Working Voltage	230/400V
Rated Impulse Voltage	4KV
International protection(IP) grade	IP65
Flammability	V0
Mechanical Life Span	Min 500 times
Warranty	1 Year
Gender type	Female
Contacts' surface processing	Silver or Gold Plated
Mounting type	Bulkhead/Surface/ cable to cable
Insert Block	Top grade PC
Working Current	10A
Temperature Bearing Range	-40ºC~+125ºC
Pollution Degree	3
Transport packing	Carton

SPECIFICATION OF CONTACT

Material	Copper Alloy
Terminal	Screw/Crimp Terminal
Screw terminal tightening	0.25Nm
Surface Treatment	Silver/Gold Plated
Wire Gauge	1.0-2.5mm2(AWG18-14)

3 Pin 10A 230/400V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
