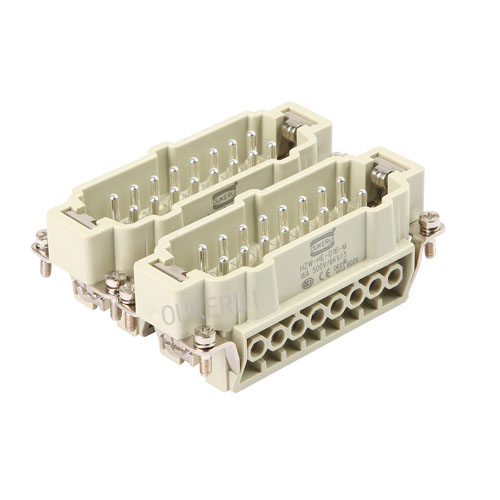

32 Pin 16A 500V Heavy Duty Connector Male Insert
  • 32 Pin 16A 500V Heavy Duty Connector Male Insert32 Pin 16A 500V Heavy Duty Connector Male Insert

32 Pin 16A 500V Heavy Duty Connector Male Insert

You can rest assured to buy 32 Pin 16A 500V Heavy Duty Connector Male Insert .We provide you with the best after-sales service and fast delivery. Our company's reputation is based on fast delivery, high quality and competitive prices. We are confident that we can be a reliable, long-term business partner! Its products are nationally recognized for their reliability and good quality.

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of high performance connectors. 32 Pin 16A 500V Heavy Duty Connector Male Insert. 32 Pin 16A 500V Heavy Duty Connector Male Insert. The number of connectors is 10, with 16A operating current and 500V operating voltage. Our main material is the special polycarbonate corrosion-resistant surface powder coating and solid design. 32 Pin 16A 500V Heavy Duty Connector Male Insert can be used in harsh environments, resistant to high temperatures, waterproof

Product Description

32 Pin 16A 500V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HE-032-M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HE-032-M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

32 Pin 16A 500V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
