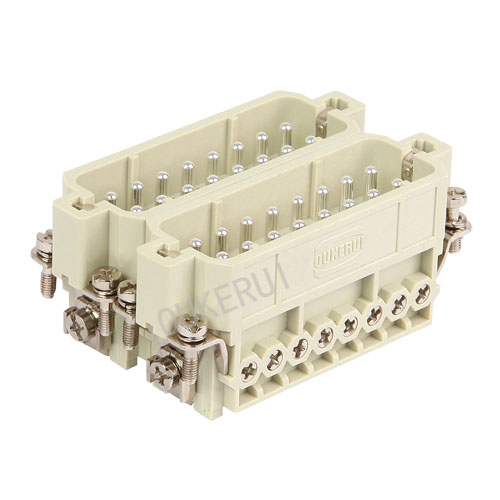

32 Pin Heavy Duty Connector Male Insert
  • 32 Pin Heavy Duty Connector Male Insert32 Pin Heavy Duty Connector Male Insert

32 Pin Heavy Duty Connector Male Insert

OUKERUIO is a professional manufacturer. 32 Pin Heavy Duty Connector Male Insert We have the perfect design. high quality raw material High efficiency and competitive price is what every customer wants and we can provide for you With the hard work of our team, we provide personalized solutions and innovative products based on customer needs. and obtained many patents and certificates.

Send Inquiry

Product Description

As a professional manufacturer, we would be happy to give you a 32 Pin Heavy Duty Connector Male Insert. We offer you the best customer service and fast delivery. Heavy duty connector interposer available for printed industry pins, multi-pole industrial connectors, CE and UL approved, factory supplied. Get a free quote now! Worldwide shipping 1 day delivery online service.

Product Description

32 Pin Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HA-032M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments

Contact Cost

Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HA-032M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)

32 Pin Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
