Home
>
Products > Heavy Duty Connector Hoods > 3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods
Products

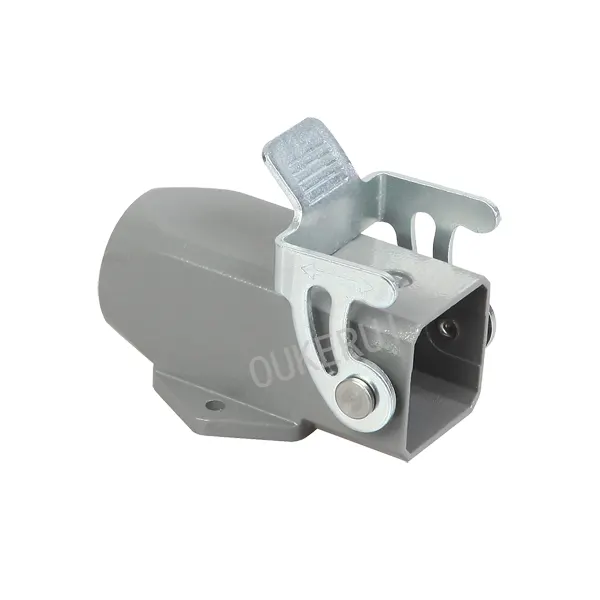

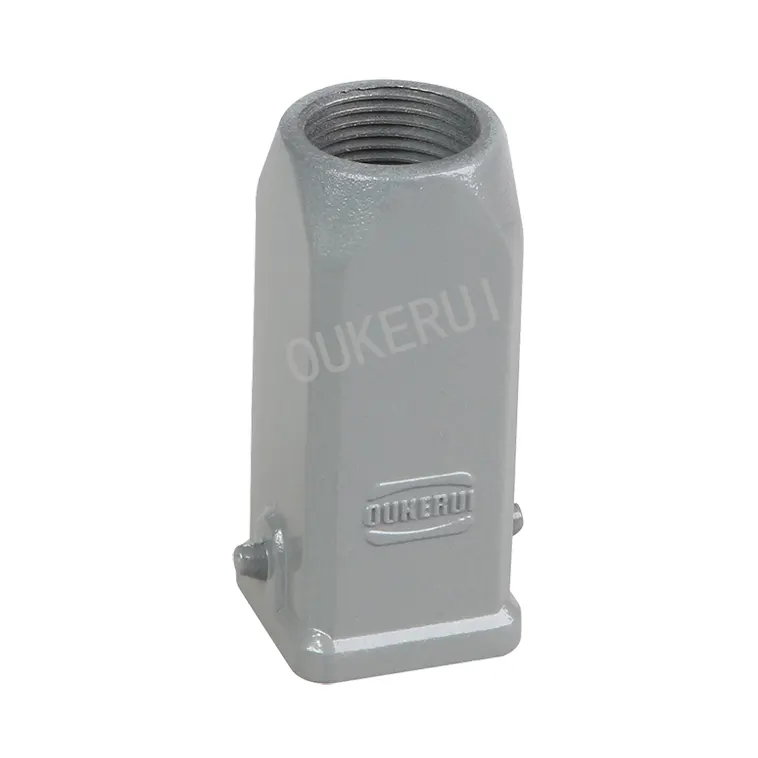

3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods
OUKERUI is China manufacturer & supplier who mainly produces 3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods with many years of experience. We hope to establish friendly cooperative relationship with your company with high quality products, reasonable price, considerate service and create a better future hand in hand.
Send Inquiry
Product Description
OUKERUI has professional manufacture, 3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods Hoods Top Entry has one aperture is M20，claping range 8-12,AG21,SW22,GL8. Pressure tight hoods/housing for heavy duty 3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods connector , Epoxy power paint /Chromated , waterproof and protected the insert .
Product Description
3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Basic Info.
| Model NO. | HZW-H3A-TK-2G-M20 |
| Contacts Surface Treatment | Silver/Glod Plated |
| Housing Material | Die-Casting Aluminum Alloy |
| Working Environments | IP65 for Various Harsh Environments |
| Contact Cost | Pay Additional Cost for Crimp Contacts |
| Specification | CE, UL, ROHS |
| Origin | China |
| Production Capacity | 3000pieces Per Day |
| Certification | UL |
| Contact Material | Copper |
| Housing Coating | Anti-Corrosion Powder Spray |
| Crimp Tooling | Available |
| Transport Package | Poly bag and Double Cartons |
| Trademark | Oukerui |
| HS Code | 8536900000 |
SPECIFICATION
| Surface | Epoxy powder Coating |
| Material | Die-casting zinc |
| Colour | Grey |
| Locking element | Lever type |
| -Lever type | Single lever |
| -Material | Stainless steel |
| Hoods/Housing seal | NBR |
| Limiting temperatures | -40~+125ºC |
| Flammability acc.to UL94 | V0 |
| Degree of protection acc.to DIN EN 60 529 for coupled connector | IP65 |
| Mounting type | Bulkhead/Surface/Cable to Cable |
| Couple inserts | HA-003,HA-004,HD-007,HD-008,HQ-005/0,HQ-007/0,HQ-012/0 |
3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
Hot Tags: 3A Plastic Top Entry M20 Plug Heavy Duty Connector Hoods, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
