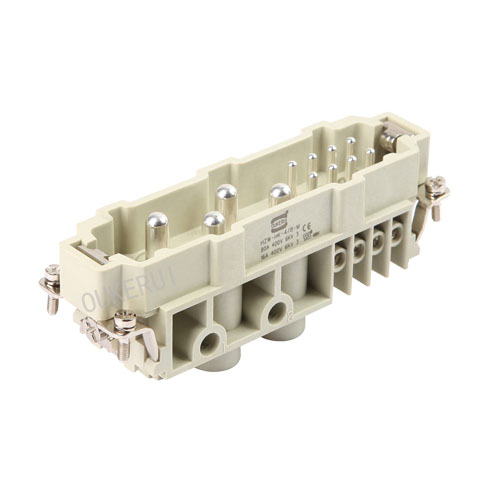

4/8 Pin 400V Heavy Duty Connector Male Insert
  • 4/8 Pin 400V Heavy Duty Connector Male Insert4/8 Pin 400V Heavy Duty Connector Male Insert

4/8 Pin 400V Heavy Duty Connector Male Insert

OUKERUI is a Chinese factory producing 4/8 Pin 400V Heavy Duty Connector Male Insert located in Ningbo, China. We have been producing heavy-duty connectors for more than 10 years and have extensive sales experience.Our connectors are CE/UL/ISO9001 certified. After-sales service: The after-sales team takes care of the customer's problems regarding packaging, quality, delivery, etc. all claims related to If the error caused by our site is finally proven, we will definitely replace the goods or lose them, we promise!

Send Inquiry

Product Description

As a professional manufacturer, we would like to offer 4/8 Pin 400V Heavy Duty Connector Male Insert. Through teamwork, we provide customized solutions and product innovations according to customers' needs, and we have obtained many patents and certificates. We constantly strive to provide competitive pricing and on-time delivery while adhering to strict quality standards.

Product Description

4/8 Pin 400V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HK-4/8-M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HK-4/8-M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 400V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 80A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge(Power area) 1.5-16mm2(AGW16-6)
Wire Gauge(Signal area) 1.0-2.5mm2(AWG18-14)

4/8 Pin 400V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
