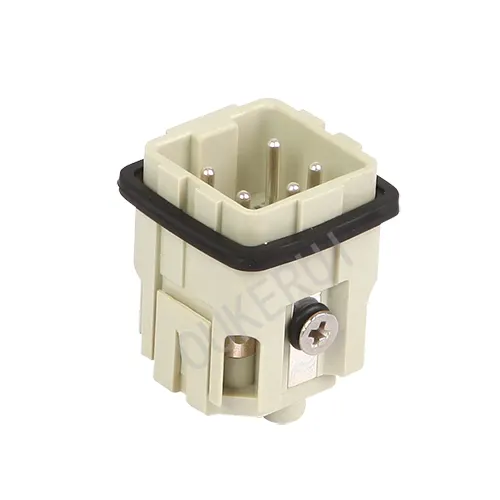

4 Pin 10A 230/400V Heavy Duty Connector Male Insert
  • 4 Pin 10A 230/400V Heavy Duty Connector Male Insert4 Pin 10A 230/400V Heavy Duty Connector Male Insert

4 Pin 10A 230/400V Heavy Duty Connector Male Insert

OUKERUI is China manufacturer & supplier who mainly produces 34 Pin 10A 230/400V Heavy Duty Connector Male Insert with many years of experience. With high quality products, reasonable prices and considerate services, we are willing to establish a friendly and cooperative relationship with your company and work together for a better future.

Send Inquiry    PDF DownLoad

Product Description

OUKERUI is a professional manufacturer of heavy duty connectors. 4 Pin 10A 230/400V Heavy Duty Connector Male Insert Our base material is polycarbonate with a special corrosion resistant powder coating finish and a rugged design for harsh environments and high temperature resistance.I sincerely look forward to working with you in the near future.

Product Description

4 Pin 10A 230/400V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HA-004M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HA-004M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 230/400V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.25Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)

4 Pin 10A 230/400V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
