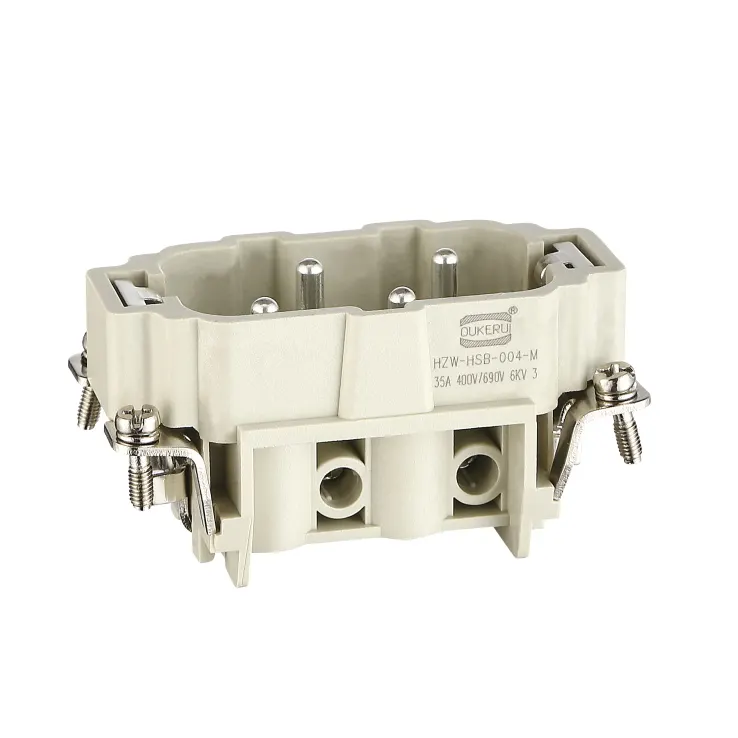

4 Pin 40A Heavy Duty Connector Male Insert
  • 4 Pin 40A Heavy Duty Connector Male Insert4 Pin 40A Heavy Duty Connector Male Insert
  • 4 Pin 40A Heavy Duty Connector Male Insert4 Pin 40A Heavy Duty Connector Male Insert

4 Pin 40A Heavy Duty Connector Male Insert

OUKERUI is a professional China 4 Pin 40A Heavy Duty Connector Male Insert manufacturer and supplier.We are a company with our own factories And it's been open for more than a decade.We have our own distributors in many parts of the world。We are eager to be your reliable long-term business partner!

Send Inquiry

Product Description

OUKERUI is an experienced factory 4 Pin 40A Heavy Duty Connector Male Insert can meet many Engineering automation requirements HSB-004-M possess 40A operating current and 400/690 V operating voltage. The connection mode is screw connection The supporting housing and hoods are H10B. Our products have certificate ROHS.We have rich experience in exporting products

Product Description

4 Pin 40A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO. HZW-HSB-004-M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HSB-004-M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 400/690V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type  male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.25Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1-2.5mm2(AWG26-14)
Stripping length 7-9mm

4 Pin 40A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
