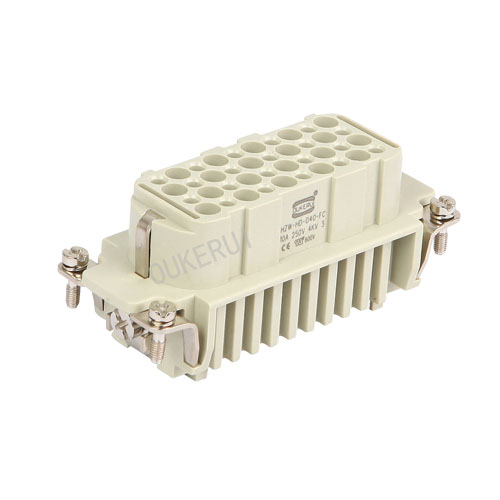

40 Pin 10A 250V Heavy Duty Connector Female Insert
  • 40 Pin 10A 250V Heavy Duty Connector Female Insert40 Pin 10A 250V Heavy Duty Connector Female Insert

40 Pin 10A 250V Heavy Duty Connector Female Insert

With years of experience in production 40 Pin 10A 250V Heavy Duty Connector Female Insert, OUKERUI can supply a wide range of 40 Pin 10A 250V Heavy Duty Connector Female Insert. High quality 40 Pin 10A 250V Heavy Duty Connector Female Insert It can meet a wide range of applications, if you need, please contact our online service in time.40 Pin 10A 250V Heavy Duty Connector Female Insert.

Send Inquiry

Product Description

You can rest assured to buy customized 40 Pin 10A 250V Heavy Duty Connector Female Insert from us.40 Pins, Industrial Connector Equivalent to Harting, Ilme, High Performance, Competitive Price. Industrial Connector for Automation Industry, Water Proof IP65, High Voltage, manufacture. Rich experience, QA can help you to inspect the factory or check the quality of the goods before delivery.

Product Description

40 Pin 10A 250V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-040FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-040FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

40 Pin 10A 250V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
