Products

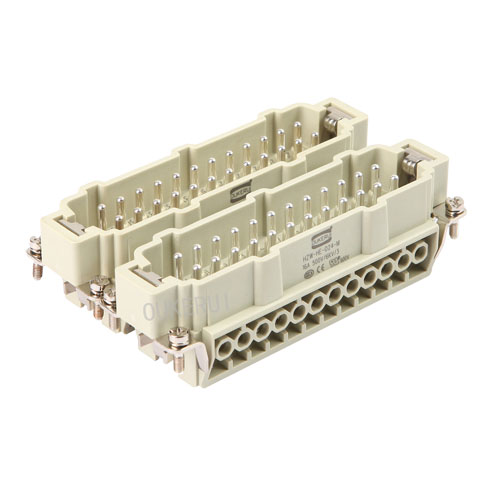

48 Pin 16A 500V Heavy Duty Connector Male Insert
OUKERUI is China manufacturer & supplier who mainly produces 48 Pin 16A 500V Heavy Duty Connector Male Insert with many years of experience. We are confident that we can establish a friendly cooperative relationship with your company with high quality products. Favorable price and considerate service, work together to create a better future.
Send Inquiry
Product Description
OUKERUI is a professional manufacturer of high performance 48 Pin 16A 500V Heavy Duty Connector Male Insert connectors. It is a modern enterprise specializing in the production and sale of high-performance connectors. Sincere suggestions from customers of various industries and continuous adoption of advanced technologies and international design concepts.
Product Description
48 Pin 16A 500V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.
Basic Info.
| Model NO. | HZW-HE-048-M |
| Contacts Surface Treatment | Silver/Glod Plated |
| Housing Material | Die-Casting Aluminum Alloy |
| Working Environments | IP65 for Various Harsh Environments |
| Contact Cost | Pay Additional Cost for Crimp Contacts |
| Specification | CE, UL, ROHS |
| Origin | China |
| Production Capacity | 3000pieces Per Day |
| Certification | UL |
| Contact Material | Copper |
| Housing Coating | Anti-Corrosion Powder Spray |
| Crimp Tooling | Available |
| Transport Package | Poly bag and Double Cartons |
| Trademark | Oukerui |
| HS Code | 8536900000 |
SPECIFICATION
| Model No. | HZW-HE-048-M |
| Terminal type | Screw Terminal |
| Housings material | Dia casting aluminum alloy |
| Working Voltage | 500V |
| Rated Impulse Voltage | 6KV |
| International protection(IP) grade | IP65 |
| Flammability | V0 |
| Mechanical Life Span | Min 500 times |
| Warranty | 1 Year |
| Gender type | Male |
| Contacts' surface processing | Silver or Gold Plated |
| Mounting type | Bulkhead/Surface/ cable to cable |
| Insert Block | Top grade PC |
| Working Current | 16A |
| Temperature Bearing Range | -40ºC~+125ºC |
| Pollution Degree | 3 |
| Transport packing | Carton |
SPECIFICATION OF CONTACT
| Material | Copper Alloy |
| Terminal | Screw/Crimp Terminal |
| Screw terminal tightening | 0.5Nm |
| Surface Treatment | Silver/Gold Plated |
| Wire Gauge | 1.0-2.5mm2(AWG18-14) |
| Stripping length | 7-9mm |
48 Pin 16A 500V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
Hot Tags: 48 Pin 16A 500V Heavy Duty Connector Male Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
