Home > Products > Heavy Duty Connector Insert > 50Pin 10A 250V Heavy Duty Connector Female Insert

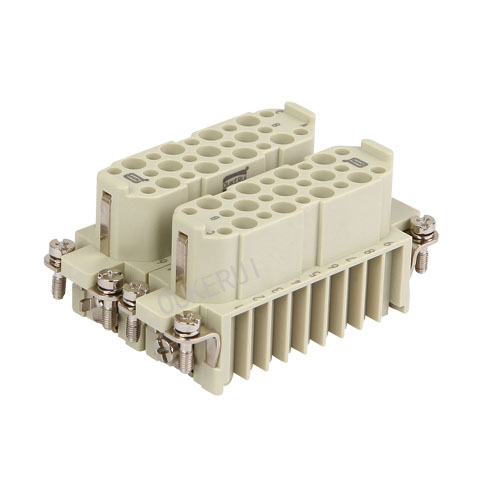

50Pin 10A 250V Heavy Duty Connector Female Insert
  • 50Pin 10A 250V Heavy Duty Connector Female Insert50Pin 10A 250V Heavy Duty Connector Female Insert

50Pin 10A 250V Heavy Duty Connector Female Insert

OUKERUI is a leading China 50Pin 10A 250V Heavy Duty Connector Female Insert manufacturer, supplier and exporter. With the pursuit of perfect product quality, our50Pin 10A 250V Heavy Duty Connector Female Insert has satisfied many customers. Our products are of good quality and favorable in price, covering most European and American markets. We are glad to be your long-term partner in China.

Send Inquiry

Product Description

OUKERUI is a professional China 50Pin 10A 250V Heavy Duty Connector Female Insert leader with high quality and reasonable price. In the process of designing and manufacturing products The company has a core of high-quality expertise and continually absorbs the world's most advanced industrial connectivity concepts and processes. Offer high quality products to your customers.

Product Description

50Pin 10A 250V Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-050FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-050FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

50Pin 10A 250V Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: 50Pin 10A 250V Heavy Duty Connector Female Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
