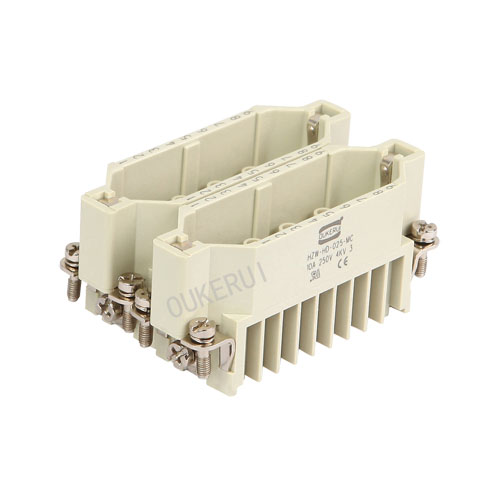

50Pin 10A 250V Heavy Duty Connector Male Insert
  • 50Pin 10A 250V Heavy Duty Connector Male Insert50Pin 10A 250V Heavy Duty Connector Male Insert

50Pin 10A 250V Heavy Duty Connector Male Insert

OUKERUI is a leading China 50Pin 10A 250V Heavy Duty Connector Male Insert manufacturer, supplier and exporter. With the pursuit of perfect product quality, our 50Pin 10A 250V Heavy Duty Connector Male Insert has satisfied many customers. As a professional manufacturer We offer you durable connector covers. OUKERUI heavy-duty connector covers are widely used in molds, machines, construction machines. and other equipment that requires an electrical connectionv.

Send Inquiry

Product Description

As a professional high quality 50Pin 10A 250V Heavy Duty Connector Male Insert manufacture, you can rest assured to buy 50Pin 10A 250V Heavy Duty Connector Male Insert. Features High temperature resistant conductive electrical machines and transmitters from our factory. And we will provide you with the best after-sale service and on-time delivery.

Product Description

50Pin 10A 250V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-050MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-050MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

50Pin 10A 250V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: 50Pin 10A 250V Heavy Duty Connector Male Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
