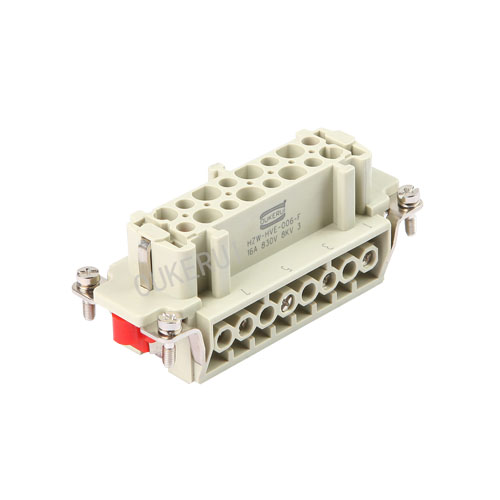

6 Pin 16A Heavy Duty Connector Female Insert
  • 6 Pin 16A Heavy Duty Connector Female Insert6 Pin 16A Heavy Duty Connector Female Insert

6 Pin 16A Heavy Duty Connector Female Insert

Find China's 6 Pin 16A Heavy Duty Connector Female Insert at OUKERUI provide professional after-sales service and reasonable price. The purpose of our company is that details determine success or failure, and attitude determines everything. The foundation of reputation is on-time delivery, with high quality and competitively priced products.

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you 6 Pin 16A Heavy Duty Connector Female Insert . We will provide the best after-sales service and fast delivery. Industrial 6-pin hdc connectors, CE and UL certified, manufactured to supply OUKERUI is a modern company specializing in the production and sale of high-performance connectors Sincere suggestions from customers in various industries and constantly absorb advanced technology and international design concepts.

Product Description

6 Pin 16A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HVE-006-F
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HVE-006-F
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 830V
Rated Impulse Voltage 8KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1.0-2.5mm2(AWG18-14)
Stripping length 7-9mm

6 Pin 16A Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
