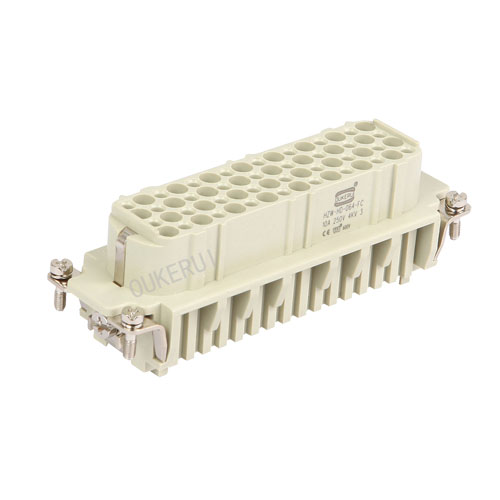

64 Pin Heavy Duty Connector Female Insert
  • 64 Pin Heavy Duty Connector Female Insert64 Pin Heavy Duty Connector Female Insert

64 Pin Heavy Duty Connector Female Insert

OUKERUI is a professional China 64 Pin Heavy Duty Connector Female Insert manufacturer and supplier.64 Pin Heavy Duty Connector Female Insert are used in many industries. These include textile machinery, transportation technology, electric power, electric vehicles, communication technology, and other equipment requiring electrical and model connections. The company is committed to treating green energy and environmental protection as an important indicator of its products.

Send Inquiry

Product Description

OUKERUI is China manufacturer & supplier who mainly produces 64 Pin Heavy Duty Connector Female Insert with many years of experience. ISO90001 certified factory, CE and UL certified rugged connector cover. High quality products, favorable prices, considerate service, and wholeheartedly establishing a friendly cooperative relationship with your company.And Create a better future!

Product Description

64 Pin Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-064FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000


Model No. HZW-HD-064FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton


Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

64 Pin Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
