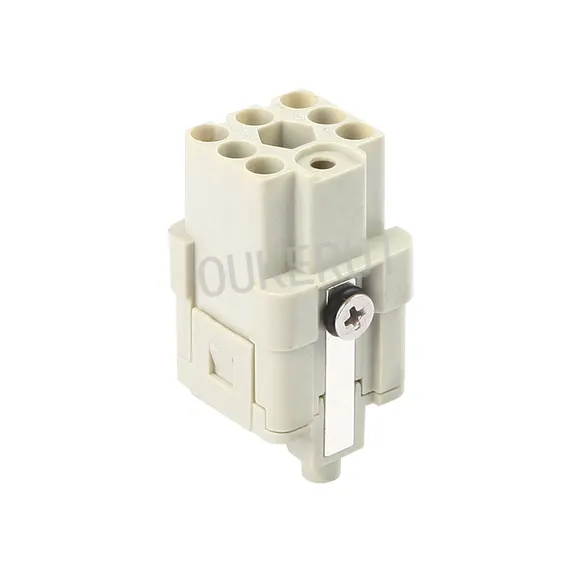

7 Pin Heavy Duty Connector Female Insert
  • 7 Pin Heavy Duty Connector Female Insert7 Pin Heavy Duty Connector Female Insert

7 Pin Heavy Duty Connector Female Insert

OUKERUI is a sales and production company in Ningbo, China 7 Pin Heavy Duty Connector Female Insert factory。 We have rich experience in domestic trade and export. We are a company that constantly strives for innovation. We are known for quality, integrity and service. We hope to create a better future with you in the near future

Send Inquiry    PDF DownLoad

Product Description

High quality 7 Pin Heavy Duty Connector Female Insert is offered by China manufacturer OUKERUI .Buy 7 Pin Heavy Duty Connector Female Insert which is of high quality directly with low price. Available in a variety of options including the most specialized applications,the inserts are designed for harsh environments or applications where high vibration can cause standard housings and connectors to fail,

Product Description

7 Pin Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HQ-007FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HQ-007FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 400V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-4.0mm2(AWG26-12)
Wire Gauge 2.5mm2

7 Pin Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
