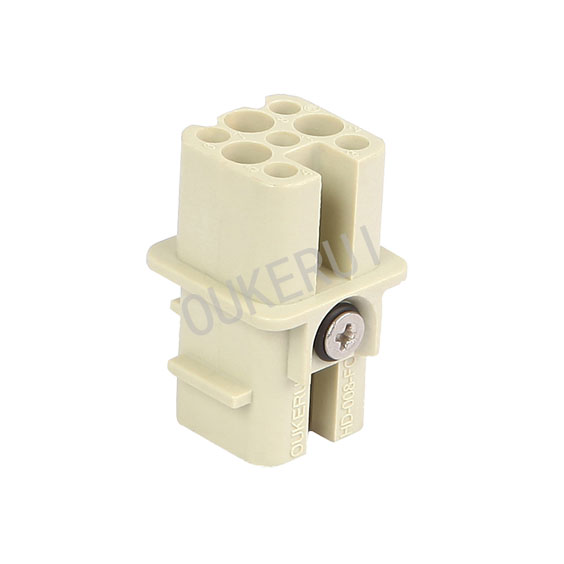

8Pin 10A Heavy Duty Connector Female Insert
  • 8Pin 10A Heavy Duty Connector Female Insert8Pin 10A Heavy Duty Connector Female Insert

8Pin 10A Heavy Duty Connector Female Insert

Find China's 8Pin 10A Heavy Duty Connector Female Insert at OUKERUI to offer professional after-sales service and reasonable price. Our reputation is based on on-time delivery, high quality and competitive prices. ​We strive to be your reliable and long-term partner. The company's products are known throughout the country for their reliable and excellent quality.

Send Inquiry

Product Description

As the professional manufacture, we would like to provide you8Pin 10A Heavy Duty Connector Female Insert. And we will offer you the best after-sale service and timely delivery. 8 Pins, CE and UL Approved Hdc Industry Connector, Manufacture Supply, OUKERUI is a modern company specializing in high performance connectors manufacturing and sales. sincere suggestions from customers from various industries, and constantly absorbing international advanced technology and design ideas.

Product Description

8Pin 10A  Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HD-008FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-008FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage ~50V/-120V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

8Pin 10A  Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
