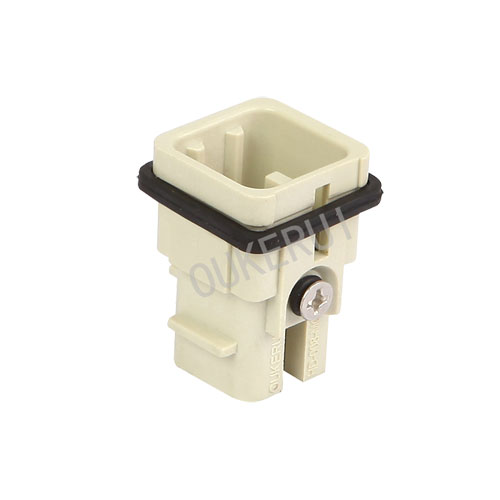

8Pin 10A Heavy Duty Connector Male Insert
  • 8Pin 10A Heavy Duty Connector Male Insert8Pin 10A Heavy Duty Connector Male Insert

8Pin 10A Heavy Duty Connector Male Insert

High quality 8Pin 10A Heavy Duty Connector Male Insert is offered by China manufacturer OUKERUI. Buy 8Pin 10A Heavy Duty Connector Male Insert which is of high quality directly with low price.We believe persistence is the key to business success. Consistently meeting consumer demand is fundamental to the company's survival. and product quality is the life of the enterprise. .

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of heavy duty connectors. 8 Pin 10A Heavy Duty Connector Male Insert The number of connectors is 8, with 10A operating current and 50/-120V operating voltage. 8 Pin 10A Heavy Duty Connector Male Insert with Waterproof IP65. We have a wealth of experience. The quality check can help you to inspect the factory or check the quality of the goods before delivery.

Product Description

8Pin 10A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info

 Model NO. HZW-HD-008MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-008MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage ~50V/-120V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

8Pin 10A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
