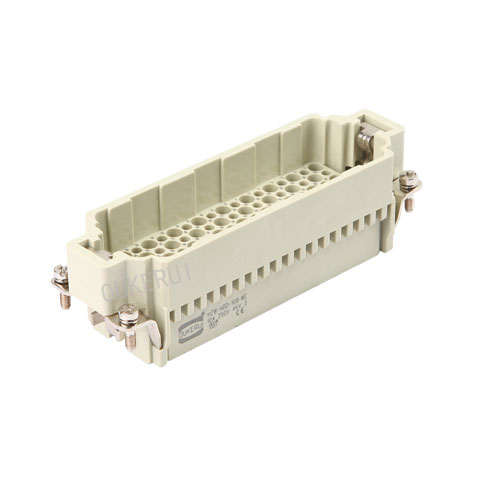

DD 108 250V Heavy Duty Connector Male Insert
  • DD 108 250V Heavy Duty Connector Male InsertDD 108 250V Heavy Duty Connector Male Insert

DD 108 250V Heavy Duty Connector Male Insert

You can rest assured to buy DD 108 250V Heavy Duty Connector Male Insert from our factory and we offer you the best after-sales service and fast delivery. We hope to become a long-term Chinese partner with you. Our products have a good price advantage and cover most European and American markets.

Send Inquiry

Product Description

OUKERUI is a high quality manufacturer of heavy duty connectors. DD 108 250V Heavy Duty Connector Male Insert. The number of male inserts is 108 volts, with an operating current of 10A and an operating voltage of 250V. Multipole Industrial Connector, ISO9001 Manufacturer, CE and UL Approved. If you have any questions or problems, please email us and we'll get back to you as soon as possible.

Product Description

DD 108 250V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HDD-108MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HDD-108MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

DD 108 250V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
