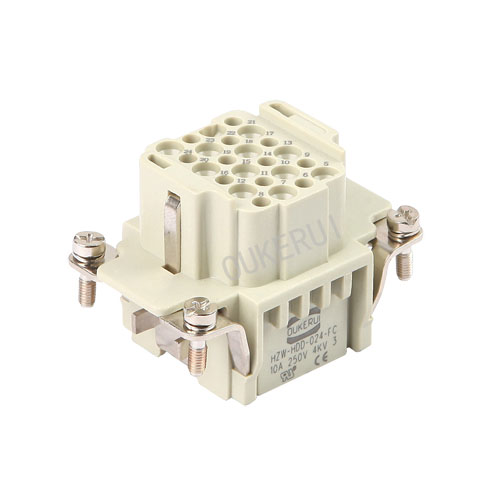

DD 24 250V 10AHeavy Duty Connector Female Insert
  • DD 24 250V 10AHeavy Duty Connector Female InsertDD 24 250V 10AHeavy Duty Connector Female Insert

DD 24 250V 10AHeavy Duty Connector Female Insert

OUKERUI is a professional manufacturer and supplier of DD 24 250V 10AHeavy Duty Connector Female Insert in China. Our company's reputation is based on prompt delivery, high quality and competitive pricing. Its products are widely recognized throughout the country for their reliability and good quality, and looking to the future, the company continues to develop and expand. We are glad to be your reliable and long-term business partner!

Send Inquiry

Product Description

As a professional high quality DD 24 250V 10AHeavy Duty Connector Female Insert producer. You can rest assured to buy DD 24 250V 10A Heavy Duty Connector Female Insert from our factory. 24 pin,Heavy Duty Connector with CE and UL Approvals, ISO Certified Manufacturer, Compatible with Harting and Ilme We offer you the best after-sales service and fast delivery.

Product Description

DD 24 250V 10AHeavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HDD-024FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HD-024FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

DD 24 250V 10AHeavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: DD 24 250V 10AHeavy Duty Connector Female Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
