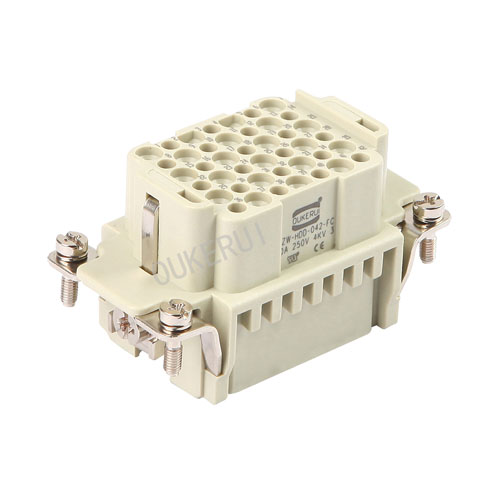

DD 42 250V 10AHeavy Duty Connector Female Insert
  • DD 42 250V 10AHeavy Duty Connector Female InsertDD 42 250V 10AHeavy Duty Connector Female Insert

DD 42 250V 10AHeavy Duty Connector Female Insert

OUKERUI is a Chinese manufacturer and supplier with many years of production of DD 42 250V 10AHeavy Duty Connector Female Insert cover. We are confident that we can establish a friendly cooperative relationship with your company with high quality products. Favorable price and considerate service, go hand in hand to create a better future.

Send Inquiry

Product Description

High quality DD 42 250V 10A Heavy Duty Connector Female Insert is supplied by the Chinese manufacturer OUKERUI. Buy MEE DD 42 250V 10A Heavy Duty Connector Female Insert with high quality and low price. Robust factory-built connectors for automated industrial applications in widely used wire harnesses Waterproof and durable IP65 connectors for harsh environments Environment must be equal to Harting.

Product Description

DD 42 250V 10AHeavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HDD-042FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HDD-042-FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

DD 42 250V 10AHeavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.

Hot Tags: DD 42 250V 10AHeavy Duty Connector Female Insert, China, Quality, Manufacturers, Suppliers, Factory, CE, UL, EUROMAP Standard
