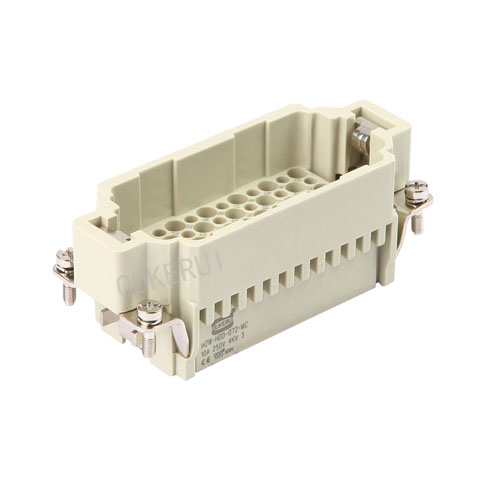

DD 72 250V Heavy Duty Connector Male Insert
  • DD 72 250V Heavy Duty Connector Male InsertDD 72 250V Heavy Duty Connector Male Insert

DD 72 250V Heavy Duty Connector Male Insert

OUKERUI is a Chinese factory producing DD 72 250V Heavy Duty Connector Male Insert located in Ningbo, China. We have been manufacturing high performance connectors for over 10 years. Connectors are CE/UL/ISO 9001 certified. We can provide excellent quality and service. OUKERUI is currently in a rapid growth phase and its market share is expanding.

Send Inquiry

Product Description

OUKERUI is a professional manufacturer of heavy duty connectors. DD 72 250V Heavy Duty Connector Male Insert. The number of connectors is 72, with 10A operating current and 250V operating voltage. Our base material is polycarbonate. Special corrosion resistant powder coating and rugged design for harsh environments and high temperature resistance.

Product Description

DD 72 250V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HDD-072MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HDD-072MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 250V
Rated Impulse Voltage 4KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 10A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-2.5mm2(AWG26-14)

DD 72 250V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
