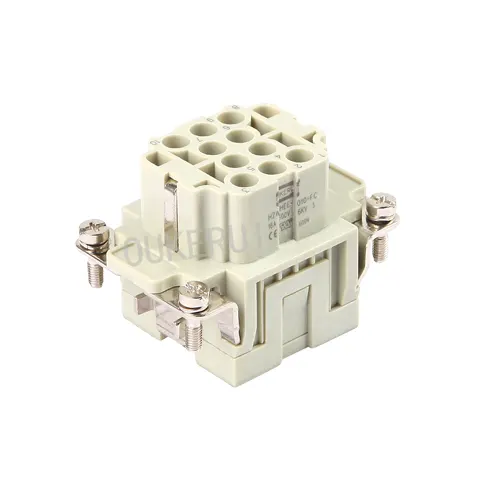

EE 10 Pin 16A Heavy Duty Connector Female Insert
  • EE 10 Pin 16A Heavy Duty Connector Female InsertEE 10 Pin 16A Heavy Duty Connector Female Insert

EE 10 Pin 16A Heavy Duty Connector Female Insert

OUKERUI is a professional China EE 10 Pin 16A Heavy Duty Connector Female Insert leader with high quality and reasonable price. We are happy to hear from them. We employ dedicated and dedicated technicians who not only enjoy their careers but also enjoy learning and acquiring skills over the years. Ongoing education and training keep us abreast of industry trends. This ensures a first class service whenever you need it.

Send Inquiry    PDF DownLoad

Product Description

As a professional high quality EE 10 Pin 16A Heavy Duty Connector Female Insert manufacture, you can rest assured to buyEE 10 Pin 16A Heavy Duty Connector Female Insert CE & UL Certified Heavy Duty Connector Housings for Industrial Machinery We are known for quality, ethics and service.

Product Description

EE 10 Pin 16A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HEE-010-FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HEE-010-FC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-4.0mm2(AWG26-14)
Stripping length 7.5mm

EE 10 Pin 16A Heavy Duty Connector Female Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
