EE 32 Pin 16A Heavy Duty Connector Female Insert

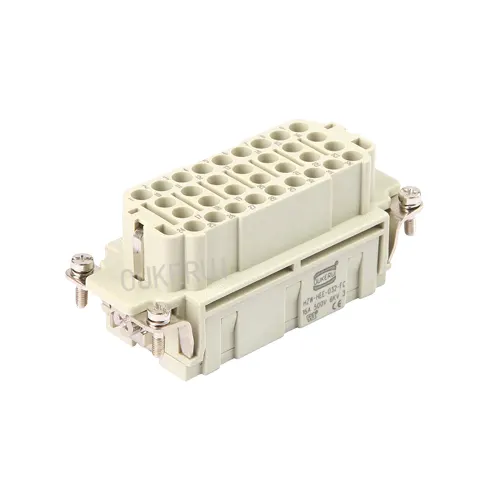

  • EE 32 Pin 16A Heavy Duty Connector Female InsertEE 32 Pin 16A Heavy Duty Connector Female Insert
  • EE 32 Pin 16A Heavy Duty Connector Female InsertEE 32 Pin 16A Heavy Duty Connector Female Insert

EE 32 Pin 16A Heavy Duty Connector Female Insert

OUKERUI is a professional manufacturer. EE 32 Pin 16A Heavy Duty Connector Female Insert We have extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our services, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

OUKERUI is EE 32 Pin 16A Heavy Duty Connector Female Insert manufacturers and suppliers in China who can wholesale EE 32 Pin 16A Heavy Duty Connector Female Insert Can be used in the printing industry.32 Pin, Multipole Industrial Connector with CE and UL Certificates, Manufacture Supply

Product Description

Oukerui EE 32 Pin 16A Heavy Duty Connector Female Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

Model NO. HZW-HEE-032-FC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HEE-032-FC
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Female
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Screw terminal tightening 0.25Nm
Surface Treatment Silver/Gold Plated
Wire Gauge 1-2.5mm2(AWG26-14)
Stripping length 7-9mm

Rj45 Modular Heavy Duty Connector Insert  are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
