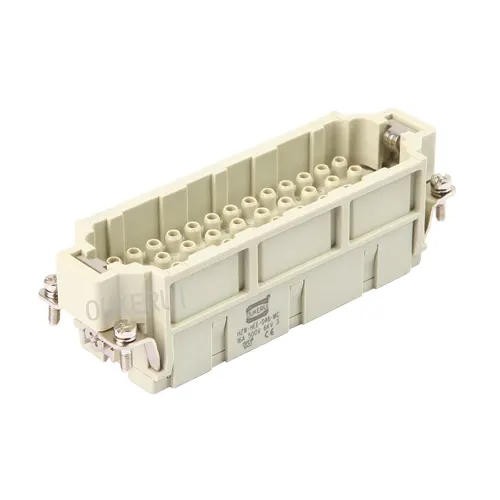

EE 46 Pin 500V Heavy Duty Connector Male Insert
  • EE 46 Pin 500V Heavy Duty Connector Male InsertEE 46 Pin 500V Heavy Duty Connector Male Insert

EE 46 Pin 500V Heavy Duty Connector Male Insert

With years of experience in EE 46 Pin 500V Heavy Duty Connector Male Insert production, OUKERUI can provide a variety of EE 46 Pin 500V Heavy Duty Connector Male Insert. High-quality EE 46 Pin 500V Heavy Duty Connector Male Insert can meet a wide range of uses, please use our online EE 46 Pin 500V Heavy Duty Connector Male Insert services in time if you wish. In addition to the product list below, you can also customize your own unique EE 46 Pin 500V Heavy Duty Connector Male Insert based on your specific needs.

Send Inquiry    PDF DownLoad

Product Description

You can rest assured to buy EE 46 Pin 500V Heavy Duty Connector Male Insert from our factory. .High Current Transmission Heavy Duty Connector Used in Industrial Machinery Control. 46pins Water-Proof for Various Harsh Environments Heavy Duty Connector to Replace Harting, Ilme We offer you the best customer service and fast delivery. We enjoy a reputation of quality, ethics and service.

Product Description

EE 46 Pin 500V Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HEE-046MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HEE-046MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-4.0mm2(AWG26-14)
Stripping length 7.5mm

EE 46 Pin 500V Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
