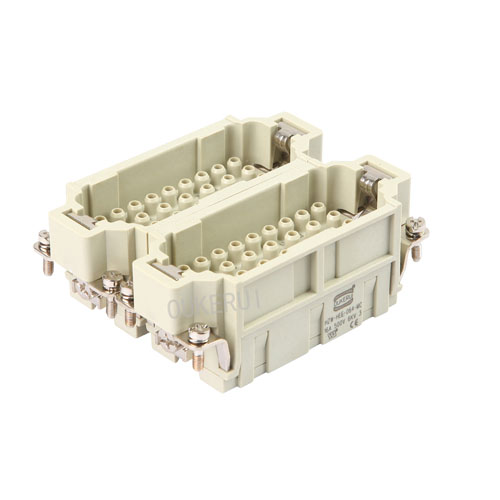

EE 64Pin Heavy Duty Connector Male Insert
  • EE 64Pin Heavy Duty Connector Male InsertEE 64Pin Heavy Duty Connector Male Insert

EE 64Pin Heavy Duty Connector Male Insert

As a professional maker, we are willing to provide you with high quality EE 64Pin Heavy Duty Connector Male Insert. We offer the best after-sales service and fast delivery. These products are known nationwide for their reliable quality. And exported to Europe, America, Africa and Australia.Looking forward to the future, the company will continue to work hard and continue to grow and develop.

Send Inquiry

Product Description

OUKERUI is China's leading EE 64Pin Heavy Duty Connector Male Insert manufacturer, supplier and exporter. Heavy Duty Rectangular Connectors (HDCs) are industrial connectors designed to transmit power, data and signal in the harshest conditions. EE 64Pin Heavy Duty Connector Male Insert provide reliable solutions that can be used in harsh environments and are wind and wind resistant. Protection class IP65

Product Description

EE 64Pin Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HEE-064MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HEE-064MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-4.0mm2(AWG26-14)
Stripping length 7.5mm

EE 64Pin Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
