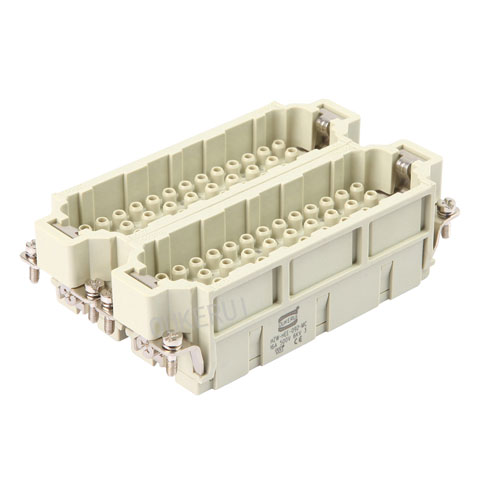

EE 92 500V 16A Heavy Duty Connector Male Insert
  • EE 92 500V 16A Heavy Duty Connector Male InsertEE 92 500V 16A Heavy Duty Connector Male Insert

EE 92 500V 16A Heavy Duty Connector Male Insert

OUKERUI is a professional manufacturer and supplier of EE 92 500V 16A Heavy Duty Connector Male Insert in China. If you are looking for the best EE 92 500V 16A Heavy Duty Connector Male Insert at a low price, We look forward to being your long-term partner in China with reliable delivery service at competitive prices. Do not hesitate to contact us.

Send Inquiry

Product Description

As a professional manufacturer We are happy to provide EE 92 500V 16A Heavy Duty Connector Male Insert for you. There are several options for the most special use.EE 92 500V 16A Heavy Duty Connector Male Insert suitable for harsh environments or applications where heavy vibration can cause standard housings and connectors to fail. This makes them durable and reliable in any environment.

Product Description

EE 92 500V 16A  Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HEE-092MC
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000

SPECIFICATION

Model No. HZW-HEE-092MC
Terminal type Crimp Terminal
Housings material Dia casting aluminum alloy
Working Voltage 500V
Rated Impulse Voltage 6KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 16A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton

SPECIFICATION OF CONTACT

Material Copper Alloy
Terminal Screw/Crimp Terminal
Surface Treatment Silver/Gold Plated
Wire Gauge 0.14-4.0mm2(AWG26-14)
Stripping length 7.5mm

EE 92 500V 16A  Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
