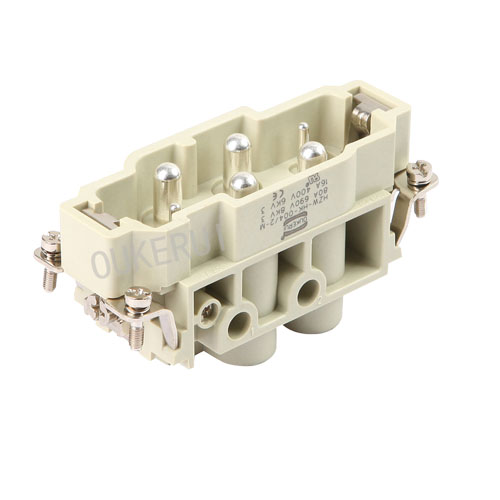

4/2 Pin 80A Heavy Duty Connector Male Insert
  • 4/2 Pin 80A Heavy Duty Connector Male Insert4/2 Pin 80A Heavy Duty Connector Male Insert

4/2 Pin 80A Heavy Duty Connector Male Insert

You can rest assured to buy 4/2 Pin 80A Heavy Duty Connector Male Insert from our factory .We will deliver the fastest speed and provide the best after-sales service Our products have a good price advantage and cover a wide range of markets, including Russia, Thailand, Turkey and other countries. We look forward to the day we become partners with you.

Send Inquiry

Product Description

OUKERUI is a high quality manufacturer of heavy duty connectors. 4/2 Pin 80A Heavy Duty Connector Male Insert. The number of male inserts is 4/2Pin, with an operating current of 80A and an operating voltage of 690V. Multi-pole industrial connectors, ISO9001 certified, CE and UL certified. If you have any questions, please email us and we will reply you as soon as possible.

Product Description

4/2 Pin 80A Heavy Duty Connector Male Insert is a Heavy Duty Connector manufacturer with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO. HZW-HK-4/2-M
Contacts Surface Treatment Silver/Glod Plated
Housing Material Die-Casting Aluminum Alloy
Working Environments IP65 for Various Harsh Environments
Contact Cost Pay Additional Cost for Crimp Contacts
Specification CE, UL, ROHS
Origin China
Production Capacity 3000pieces Per Day
Certification UL
Contact Material Copper
Housing Coating Anti-Corrosion Powder Spray
Crimp Tooling Available
Transport Package Poly bag and Double Cartons
Trademark Oukerui
HS Code 8536900000


Model No. HZW-HK-4/2-M
Terminal type Screw Terminal
Housings material Dia casting aluminum alloy
Working Voltage 690V
Rated Impulse Voltage 8KV
International protection(IP) grade IP65
Flammability V0
Mechanical Life Span Min 500 times
Warranty 1 Year
Gender type Male
Contacts' surface processing Silver or Gold Plated
Mounting type Bulkhead/Surface/ cable to cable
Insert Block Top grade PC
Working Current 80A
Temperature Bearing Range -40ºC~+125ºC
Pollution Degree 3
Transport packing Carton


Material Copper Alloy
Terminal Screw/Crimp Terminal
Screw terminal tightening 0.5Nm
Surface Treatment Silver/Gold Plated
Wire Gauge(Power area) 1.5-16mm2(AGW16-6)
Wire Gauge(Signal area) 1.0-2.5mm2(AWG18-14)

4/2 Pin 80A Heavy Duty Connector Male Insert are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
